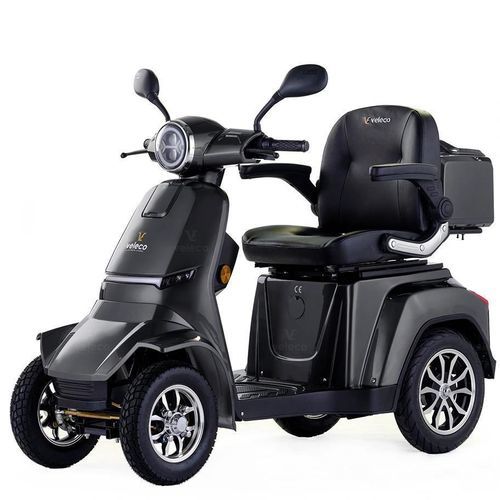

Electric mobility scooter GRA-SIL

4-wheel

OVERVIEW
Class-3 mobility scooter designed for outdoor and urban use. Max user weight: 160 kg. Scooter weight: 125 kg. Hill climbing ability: 17°. Maximum speed: 12 km/h (8 mph). Maximum single-charge range: 45–60 km. Turning radius: 220 cm.

MOTOR
Power: 1000 W. Voltage: 60 V. Acceleration control: right-hand throttle. Response: low.

BATTERY
Type: Lead‑Acid Gel. Capacity: 20 Ah. Voltage: 60 V. Life cycle: ≈600 full charges. Charge time: ≈8 h.

BRAKES
Front: hydraulic disc. Rear: drum. Magnetic brake: no. Parking brake included.

WHEELS
4 pneumatic tubeless tyres. Size: front 3.00-8", rear 3.00-10". Recommended tyre pressure: 2.25 bar (225 kPa / 32.5 PSI).

LIGHTS
Integrated LED lighting: low beam, high beam, tail, daytime running lights, indicators, brake light and hazard lights.

FEATURES

• Horn
• Rearview mirrors
• Steering lock
• Parking brake
• Electric LED display
• USB port
• Alarm
• Remote control
• Comfortable seat with adjustment

TECHNICAL SPECIFICATIONS

• SKU: GRA-SIL
• Color: Gray
• Production year: 2021
• Model: Gravis
• Brand: Veleco
• Max user weight: 160 kg
• Scooter weight: 125 kg
• Max range (single charge): 45–60 km
• Maximum speed: 12 km/h (8 mph)
• Motor power: 1000 W
• Battery: 60 V, 20 Ah Lead‑Acid Gel, ≈8 h charge time
• Brakes: Front hydraulic disc, rear drum
• Tyres: Pneumatic tubeless F 3.00-8" / R 3.00-10"
• Turning radius: 220 cm
