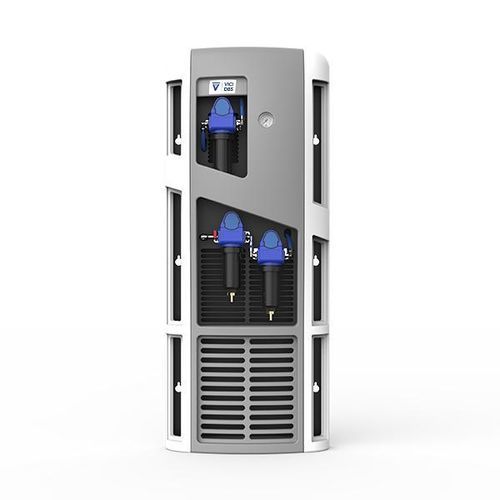

Dry nitrogen generator Whisper 0-40
for LC/MSfor spectrometryfor laboratory analyzers

Dry nitrogen generator - Whisper 0-40 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers
Dry nitrogen generator - Whisper 0-40 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers
Dry nitrogen generator - Whisper 0-40 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
dry
Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, for spectrometry, NMR, for solvent evaporation
Configuration
not specified
Technology
membrane
Output

20 l/min, 40 l/min
(5.2834 us gal/min, 10.5669 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

97 %, 99 %

Description

Overview
The Whisper 0-40 Nitrogen Generator is designed to supply nitrogen for LC/MS and other laboratory instruments. It uses high-efficiency membrane technology to separate nitrogen from a compressed air source, providing a dry, oil-free nitrogen stream with a low pressure drop (~1 barg) so it can share a lab compressed air supply.

Features
  • Flow rate: 40 L/min
  • Purity: 97% at 40 L/min; 99% at 20 L/min
  • Outlet pressure: up to 10 barg (160 psig) — typical outlet 7 barg (100 psig)
  • Minimal maintenance and no electrical supply required
  • Integrated economy mode
  • Proprietary membrane technology
  • 2-year standard warranty

Part number
Part# DB-WN2-0-40

Applications
  • LC/MS instrument gases:
    • Nebulizing gas
    • Curtain gas
    • Shield gas
    • Sheath gas
    • Electrospray gas
    • APCI gas
    • Jet Stream gradient
  • Spectroscopy:
    • NMR spectrometers
  • Analyzers:
    • Thermal analyzers (TGA/DSC)
  • Other laboratory uses:
    • Sample concentrators and evaporators
    • Evaporative Light Scattering Detector (ELSD), corona detectors, charged aerosol detectors (CAD)
    • Cell and IVF incubators
    • Mask aligner purge, fume hood / cabinet purge
    • 3D printer inerting, glove box purge

Options
  • 10 L tank
  • 10 m tubing
  • 100% PTFE special tubing

Technical specifications
  • Flow: 40 L/min
  • Purity: 97% @ 40 L/min; 99% @ 20 L/min
  • Dew point: -50°C (-58°F)
  • Outlet pressure: example values include 7 barg (100 psig); references up to 10 barg (160 psig)
  • Required inlet pressure: 8.5–10 barg (123–160 psig)
  • Actual inlet air requirement: 120 L/min
  • Recommended compressor inlet: 240 L/min
  • Pressure drop: 1.5 barg (22 psig)
  • Inlet air quality: ISO8573-1:2010 (page references Class 3.2.2 and Class 1.2.1)
  • Technology: Membrane
  • Warm up time / Electrical supply / Noise level: none required
  • Dimensions (W×H×D): 480 × 1300 × 300 mm
  • Weight: 15 kg
  • Shipping dimensions: see documentation (multiple configurations listed)
  • Shipping weight: 22 kg
  • Operating temperature: 15–35°C
  • Inlet connection: 3/8" G
  • Outlet connection: 1/4" compression
  • Certification: CE
