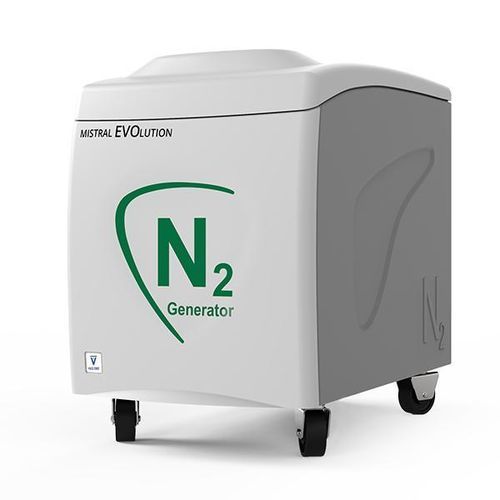

LC/MS nitrogen generator Mistral Evolution 35
NMRplug-and-playPSA

LC/MS nitrogen generator - Mistral Evolution 35 - VICI AG International - NMR / plug-and-play / PSA
LC/MS nitrogen generator - Mistral Evolution 35 - VICI AG International - NMR / plug-and-play / PSA
LC/MS nitrogen generator - Mistral Evolution 35 - VICI AG International - NMR / plug-and-play / PSA - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for LC/MS, NMR
Configuration
plug-and-play
Technology
PSA, CMS, molecular carbon sieve
Other characteristics
with compressor
Output

35 l/min
(9.246 us gal/min)

Output pressure

8 bar
(116.03 psi)

Gas purity

98 %

Rated capacity

1,800 W
(2.4 hp)

Description

Overview
The Mistral Evolution 35 Nitrogen Generator is a PSA-based, bench-top solution delivering 35 L/min of nitrogen at 98% purity. It includes an integrated oil-free air compressor and is designed for continuous use in analytical laboratories requiring reliable inert gas for LC/MS and other instrument applications.

Features
  • Flow rate: 35 L/min
  • Purity: 98%
  • Outlet pressure: up to 8 barg (116 psig)
  • Oil-free, low-noise compressor options
  • Proprietary carbon molecular sieve (PSA) technology
  • Complete plug-and-play solution for LC/MS
  • Standard 2-year warranty


Applications
  • LC/MS gases: nebulizing, curtain, shield, sheath, electrospray, APCI, jet stream
  • Spectroscopy: NMR instruments
  • Analytical instruments: thermal analyzers (TGA/DSC)
  • Other lab uses: sample concentrators, ELSD, corona detectors, CAD, sample evaporators, cell incubators (including IVF/stem cell), mask aligner purge, fume hood/cabinet purge, 3D printer inerting, glove box purge


Options
  • 10 litre external tank


Technical specifications
  • Nitrogen flow rate: 35 L/min
  • Nitrogen purity: 98%
  • Dewpoint: -50 °C (-58 °F)
  • Outlet pressure: up to 8 barg (116 psig)
  • Technology: Carbon molecular sieve (PSA)
  • Warm up time: 20 minutes
  • LED indicators: Power on/off, system ready, error indicators
  • Electrical supply: 220-240V 50Hz / 110-120V 60Hz (NEMA 5-20P)
  • Power consumption: 1800 W
  • Product dimensions: 482W x 641H x 835D mm (18.9W x 25H x 33D inches)
  • Product weight: 90 kg (198 lbs)
  • Shipping dimensions: 550W x 800H x 940D mm (21.6W x 31.4H x 37D inches)
  • Shipping weight: 115 kg (254 lbs)
  • Operating temperature: 15 to 35 °C (59 to 95 °F)
  • Outlet connection: 6 mm OD compression or 1/4"
  • Certification: CE, FCC, MET (UL and CSA compliant)
