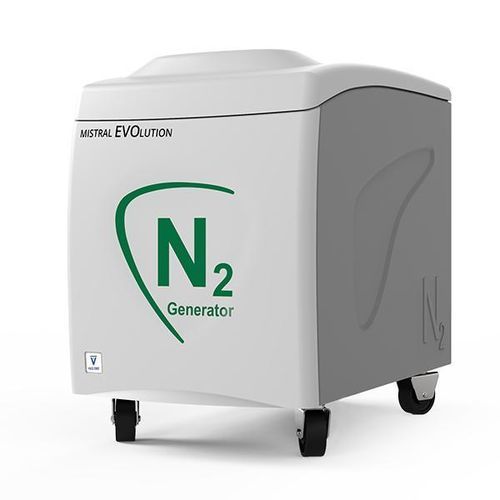

High-purity nitrogen generator Mistral Evolution 25
for LC/MSNMRfor solvent evaporation

High-purity nitrogen generator - Mistral Evolution 25 - VICI AG International - for LC/MS / NMR / for solvent evaporation
High-purity nitrogen generator - Mistral Evolution 25 - VICI AG International - for LC/MS / NMR / for solvent evaporation
High-purity nitrogen generator - Mistral Evolution 25 - VICI AG International - for LC/MS / NMR / for solvent evaporation - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
high-purity
Applications
for LC/MS, for mass spectrometers, NMR, for solvent evaporation
Configuration
plug-and-play
Technology
PSA, CMS, molecular carbon sieve, electrospray
Other characteristics
with compressor
Output

25 l/min
(6.6043 us gal/min)

Output pressure

8 bar
(116.03 psi)

Gas purity

99 %

Rated capacity

1,800 W
(2.4 hp)

Description

Overview
The Mistral Evolution 25 nitrogen generator uses pressure swing adsorption (PSA) with proprietary carbon molecular sieve to produce a continuous stream of nitrogen at 25 L/min and 99% purity. The unit includes an integrated oil-free air compressor and provides a regulated outlet pressure up to 8 barg for laboratory and industrial inert-gas applications such as LC/MS.

Features
  • Flow rate: 25 L/min
  • Purity: 99%
  • Outlet pressure: up to 8 barg (116 psig)
  • Integral oil-free compressor; low-noise options
  • Proprietary carbon molecular sieve (PSA) technology
  • Plug-and-play LC/MS solution
  • Standard 2-year warranty


Part numbers / Electrical options
  • Part# DB-EVO-25-EU (220V/50Hz)
  • Part# DB-EVO-25-US (115V/60Hz NEMA 5-20P)


Applications
  • Nebulizing gas
  • Curtain gas
  • Shield gas
  • Sheath gas
  • Electrospray gas
  • APCI gas
  • Jet stream gradient
  • Nuclear magnetic resonance spectrometers (NMR)
  • Thermal analyzers (TGA/DSC)
  • Sample concentrators
  • Evaporative light scattering detector (ELSD)
  • Corona detectors
  • Charged aerosol detector (CAD)
  • Sample evaporators
  • Cell incubators
  • IVF / stem cell incubators
  • Mask aligner
  • Fume hood / cabinet purge
  • 3D printer inerting
  • Glove box purge


Options
  • 10 liter tank


Specifications
  • Nitrogen flow rate: 25 L/min
  • Nitrogen purity: 99%
  • Dewpoint: -50 ºC (-58 ºF)
  • Outlet pressure: 8 barg (116 psig)
  • Technology: Carbon molecular sieve (PSA)
  • Warm up time: 20 minutes
  • LED indicators: Power on/off, system ready, errors
  • Electrical supply: 220-240V 50Hz / 110-120V 60Hz NEMA 5-20P
  • Power consumption: 1800 W
  • Product dimensions: 482W x 641H x 835D mm (18.9W x 25H x 33D in)
  • Product weight: 90 kg (198 lbs)
  • Shipping dimensions: 550W x 800H x 940D mm (21.6W x 31.4H x 37D in)
  • Shipping weight: 115 kg (254 lbs)
  • Operating temperature: 15 to 35 ºC (59 to 95 ºF)
  • Outlet connection: 6 mm OD compression or 1/4"
  • Certification: CE, FCC, MET (UL and CSA compliant)
