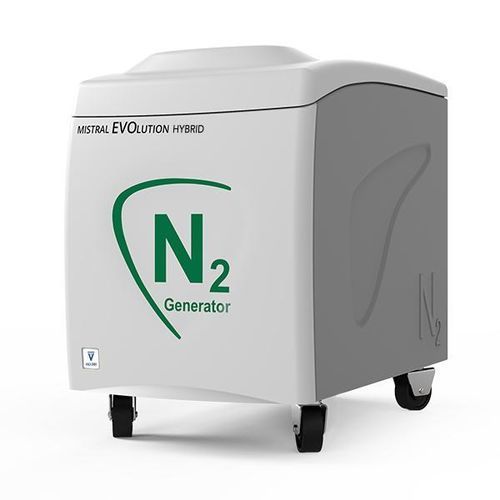

High-purity nitrogen generator Mistral Evolution

for LC/MSplug-and-playPSA

Overview
The Mistral Evolution Hybrid Nitrogen Generator is engineered to supply continuous, high-purity nitrogen for LC/MS systems (including AB SCIEX instruments). It employs pressure swing adsorption (PSA) with proprietary carbon molecular sieves (CMS) to remove oxygen and traces of humidity from compressed air, delivering controlled flow, purity and outlet pressure for analytical laboratory use.

Features

• Flow rate: 12 L/min
• Purity: >98%
• Maximum outlet pressure: 7 barg (100 psig)
• Oil-free compressor options with low noise
• Proprietary carbon molecular sieve (CMS) technology
• Plug-and-play solution for LC/MS setups
• 2 year standard warranty

Applications

• LC/MS systems (including AB SCIEX)

Options

• N/A

Specifications (table)
Nitrogen flow rate lpm: 12 @ 5 barg (80 psig)
Air 1 - flow rate lpm: 8 @ 4 barg (60 psig)
Air 2 flow rate lpm: 24 @ 7 barg (100 psig)
Nitrogen Purity: >98%
Dewpoint: -50ºC (-58ºF)
Outlet pressure barg (psig): 7 (100)
Technology: Carbon molecular sieve
Warm up time (minutes): 20 minutes
Electrical supply: 220-240V 50Hz / 110-120V 60Hz NEMA 5-20P
Power consumption watts: 1800
Product dimensions mm (in): 482W x 641H x 835D (18.9W x 25H x 33D)
Product weight kg (lbs): 90 (198)
Shipping dimensions mm (in): 550W x 800H x 940D (21.6W x 31.4H x 37D)
Shipping weight kg (lbs): 115 (254)
Operating temperature ºC (ºF): 15 to 35 (59 to 95)
Outlet connection: 3 x 6 mm OD compression or 1/4"
Certification: CE, FCC, MET (UL and CSA compliant)

Technical specifications

• Nitrogen flow rate: 12 L/min @ 5 barg (80 psig)
• Air supply flow (Air 1): 8 L/min @ 4 barg (60 psig)
• Air supply flow (Air 2): 24 L/min @ 7 barg (100 psig)
• Nitrogen purity: >98%
• Dewpoint: -50ºC (-58ºF)
• Maximum outlet pressure: 7 barg (100 psig)
• Technology: Carbon molecular sieve (CMS) PSA
• Warm up time: 20 minutes
• Electrical supply: 220-240V 50Hz / 110-120V 60Hz (NEMA 5-20P)
• Power consumption: 1800 W
• Product dimensions: 482W x 641H x 835D mm (18.9 x 25 x 33 in)
• Product weight: 90 kg (198 lb)
• Shipping dimensions: 550W x 800H x 940D mm (21.6 x 31.4 x 37 in)
• Shipping weight: 115 kg (254 lb)
• Operating temperature range: 15 to 35 ºC (59 to 95 ºF)
• Outlet connections: 3 x 6 mm OD compression or 1/4"
• Certifications: CE, FCC, MET (UL and CSA compliant)
• Part numbers: DB-EVO-HY-EU (220V/50Hz), DB-EVO-HY-US (110V/60Hz NEMA 5-20P)
• Warranty: 2 year standard warranty
