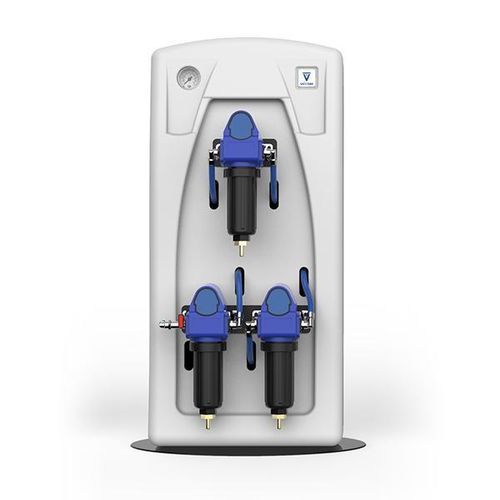

High-purity nitrogen generator Mini Whisper

for LC/MSfor solvent evaporationfor mass spectrometers

Overview
The Mini Whisper Hybrid Nitrogen Generator is a compact membrane-based unit designed to supply filtered, dried nitrogen for LC‑MS and related laboratory applications, and for solvent evaporation. It separates nitrogen from compressed air with a low pressure drop, allowing connection to an existing dry, oil-free compressor in the lab.

Key features

• Flow rates: curtain gas 12 L/min @ 7 barg (100 psig); exhaust gas 10 L/min @ 4 barg (60 psig); source gas 26 L/min @ 7 barg (100 psig)
• Purity: 99% at maximum flow
• Operating pressure up to 7 barg (100 psig)
• Membrane separation technology
• Integrated economy mode
• Minimal maintenance; no electrical supply required
• 2 year standard warranty

Applications

• Nebulizing gas, shield/sheath gas and electrospray for LC‑MS
• Solvent evaporation for analytical samples
• Compatibility: SCIEX LC/MS, SHIMADZU LC/MS and similar systems

Technical specifications

• Curtain gas flow rate: 12 L/min @ 7 barg (100 psig)
• Exhaust gas flow rate: 10 L/min @ 4 barg (60 psig)
• Source gas flow rate: 26 L/min @ 7 barg (100 psig)
• Nitrogen purity at max flow: 99%
• Dew point: -40°C (-40°F)
• Outlet pressure: up to 7 barg (100 psig)
• Inlet pressure: 8.5–10 barg (123–160 psig)
• Actual inlet air requirement: 96 L/min; recommended compressor: 192 L/min
• Pressure drop: 1.5 barg (22 psig)
• Inlet air quality: Clean dry compressed air ISO8573-1:2010 Class 1.2.1
• Warm up time: None; Electrical supply: None; Noise level: None
• Dimensions (W×H×D): 348 × 735 × 350 mm (13.7 × 29 × 13.8 in)
• Weight: 8 kg (17.6 lbs); Shipping weight: 12 kg (27 lbs)
• Operating temperature: 15–35°C (59–95°F)

Compliance & connections

• Certification: CE
• Inlet connection: 3/8" G
• Outlet connection: 6 mm OD compression or 1/4"
