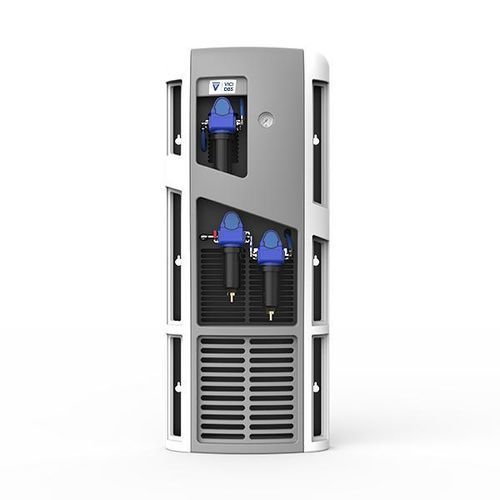

High-purity nitrogen generator Whisper 0-80
for LC/MSfor spectrometryfor laboratory analyzers

High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers
High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers
High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for spectrometry / for laboratory analyzers - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
high-purity
Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, for spectrometry
Configuration
not specified
Technology
membrane
Output

22 l/min, 25 l/min, 80 l/min
(5.8118 us gal/min, 6.6043 us gal/min, 21.1338 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

97 %

Description

DESCRIPTION
The Whisper 0-80 Hybrid Nitrogen Generator supplies on-demand nitrogen for LC/MS and laboratory evaporation needs. Using proprietary membrane separation, it delivers up to 97% nitrogen purity with low pressure drop so it can share a clean, dry, oil-free compressed air source in the lab. Designed for minimal maintenance, the unit includes an integrated economy mode and a 2-year standard warranty.

WHISPER 0-80 HYBRID FEATURES:
  • Flow rates: curtain gas 80 L/min @ 7 barg (100 psig); exhaust gas 25 L/min @ 4 barg (60 psig); source gas 22 L/min @ 7 barg (100 psig)
  • Nitrogen purity: 97%
  • Maximum outlet pressure: 7 barg (100 psig)
  • Minimal maintenance requirements
  • Integrated economy mode
  • Proprietary membrane technology
  • 2 year standard warranty


APPLICATIONS
  • LC/MS curtain, sheath and nebulizing gas
  • Electrospray and evaporative solvent removal
  • Shield gas for analytical instruments
  • Compatible with SCIEX and SHIMADZU LC/MS systems


OPTIONS
  • None available


SPECS
  • Model: Whisper 0-80 Hybrid Nitrogen Generator
  • Curtain gas flow rate: 80 L/min @ 7 barg (100 psig)
  • Exhaust gas flow rate (dry air): 25 L/min @ 4 barg (60 psig)
  • Source gas flow rate (dry air): 22 L/min @ 7 barg (100 psig)
  • Nitrogen purity at max flow: 97%
  • Dew point: -40 ºC (-40 ºF)
  • Outlet pressure: 7 barg (100 psig)
  • Inlet pressure: 8.5–10 barg (123–160 psig)
  • Actual inlet air requirement: 297 L/min
  • Recommended compressor air: 594 L/min
  • Pressure drop: 1.5 barg (22 psig)
  • Inlet air quality: Clean dry compressed air ISO8573-1:2010 Class 1.2.1
  • Technology: Membrane separation
  • Warm up time: None
  • Electrical supply: None
  • Noise level: None specified
  • Dimensions (W×H×D): 480 × 1300 × 300 mm (18.9 × 51 × 11.8 in)
  • Product weight: 30 kg (66 lb)
  • Shipping dimensions (example): 1600 × 400 × 590 mm (63 × 15.7 × 23.2 in)
  • Shipping weight: 37 kg (82 lb)
  • Operating temperature: 15–35 ºC (59–95 ºF)
  • Inlet connection: 3/8" G
  • Outlet connection: 6 mm or 1/4" OD compression
  • Certification: CE
