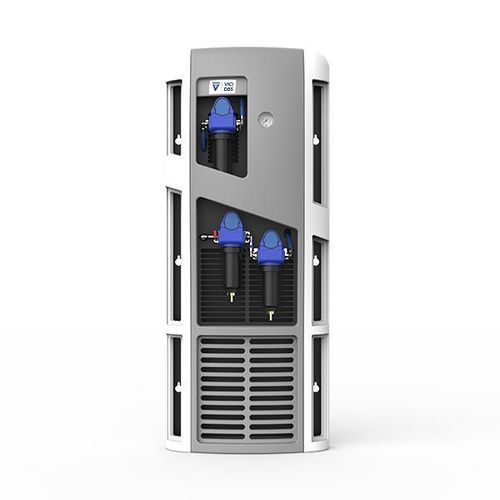

High-purity nitrogen generator Whisper 0-80
for LC/MSfor laboratory analyzersNMR

High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for laboratory analyzers / NMR
High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for laboratory analyzers / NMR
High-purity nitrogen generator - Whisper 0-80 - VICI AG International - for LC/MS / for laboratory analyzers / NMR - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
high-purity
Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, NMR, for solvent evaporation
Configuration
floor-standing
Technology
membrane
Output

50 l/min, 80 l/min
(13.2086 us gal/min, 21.1338 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

97 %, 98 %

Description

Description
The Whisper 0-80 Nitrogen Generator supplies nitrogen for LC/MS and other analytical laboratory applications. Using high‑efficiency membrane separation, it delivers up to 80 L/min of nitrogen at laboratory-grade purity while operating from a low‑pressure, dry oil‑free compressed air source. The unit supports solvent evaporation workflows and integrates an economy mode for reduced compressed air consumption; it requires minimal maintenance and is CE certified.

Features
  • Flow rate: 80 L/min
  • Purity: 97% @ 80 L/min; 98% @ 50 L/min
  • Maximum outlet pressure: up to 10 barg (160 psig); typical outlet 7 barg (100 psig)
  • Low inlet pressure requirement and minimal pressure drop (~1–1.5 barg)
  • Integrated economy mode
  • Proprietary membrane technology
  • Minimal maintenance; no electrical supply required
  • 2-year standard warranty


Applications
  • LC/MS instruments: nebulizing gas, curtain gas, shield/sheath gas, electrospray/APCI gases
  • Spectroscopy: NMR spectrometers
  • Analyzers: thermal analyzers (TGA/DSC)
  • Other laboratory uses: sample concentrators, ELSD, corona detectors, CAD, sample evaporators, cell/IVF incubators, mask aligners, fume hood purge, 3D printer inerting, glove box purge


Options
  • 10 L tank
  • 10 m tubing
  • 100% PTFE special tubing


Technical specifications
  • Flow: 80 L/min
  • Purity: 97% @ 80 L/min; 98% @ 50 L/min
  • Dew point: -50 °C (-58 °F)
  • Outlet pressure: 7 barg (100 psig) (up to 10 barg / 160 psig)
  • Inlet pressure: 8.5–10 barg (123–160 psig)
  • Actual inlet air requirement: 210 L/min
  • Recommended compressor inlet: 420 L/min
  • Pressure drop: 1.5 barg (22 psig)
  • Inlet air quality: clean dry compressed air ISO8573-1:2010 (see Class 3.2.2 and 1.2.1)
  • Technology: membrane
  • Warm-up time: none
  • Electrical supply: none
  • Noise level: none specified
  • Product dimensions (mm): 480 W x 1300 H x 300 D
  • Product weight: 18 kg (40 lb)
  • Shipping dimensions (mm): 1270 W x 375 H x 590 D; 1600 W x 400 H x 590 D
  • Shipping weight: 27 kg (60 lb)
  • Operating temperature: 15 to 35 °C (59 to 95 °F)
  • Inlet connection: 3/8" G
  • Outlet connection: 1/4" compression
  • Certification: CE
