LC/MS nitrogen generator Whisper 0-120
for spectrometryfor laboratory analyzersNMR

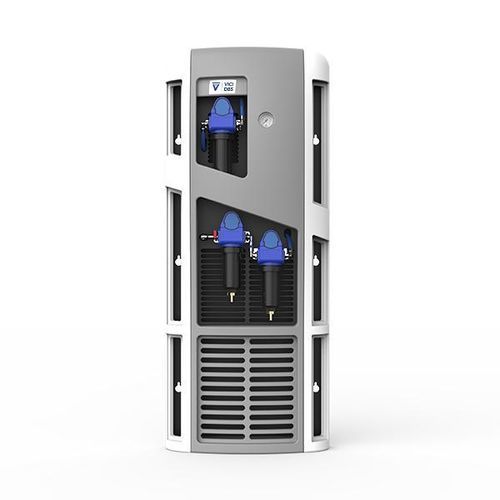

LC/MS nitrogen generator - Whisper 0-120 - VICI AG International - for spectrometry / for laboratory analyzers / NMR
LC/MS nitrogen generator - Whisper 0-120 - VICI AG International - for spectrometry / for laboratory analyzers / NMR
LC/MS nitrogen generator - Whisper 0-120 - VICI AG International - for spectrometry / for laboratory analyzers / NMR - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, for spectrometry, NMR
Configuration
compact
Technology
membrane
Output

50 l/min, 120 l/min
(13.2086 us gal/min, 31.7006 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

95 %, 98 %

Description

Overview
The Whisper 0-120 Nitrogen Generator is designed to supply laboratory instruments with a continuous stream of nitrogen that meets LC/MS flow, purity and pressure requirements. It uses high-efficiency membrane separation to extract nitrogen from a clean, dry compressed air source. Low pressure drop (1 barg) allows connection to an existing dry, oil-free compressor in the lab.

Features
  • Flow rate: 120 L/min
  • Purity: 95% @ 120 L/min; 98% @ 50 L/min
  • Outlet pressure: up to 10 barg (160 psig); typical 7 barg (100 psig)
  • Minimal maintenance and no electrical supply required
  • Integrated economy mode
  • Proprietary membrane technology
  • 2 year standard warranty


Applications
Products for LC/MS Instruments
  • Nebulizing gas
  • Curtain gas
  • Shield gas
  • Sheath gas
  • Electrospray gas
  • APCI gas
  • Jet stream gradient


Products for Spectroscopy
  • Nuclear Magnetic Resonance Spectrometers (NMR)


Products for Analyzers
  • Thermal analyzers (TGA/DSC)


Other lab applications
  • Sample concentrators
  • Evaporative Light Scattering Detector (ELSD)
  • Corona detectors
  • Charged aerosol detector (CAD)
  • Sample evaporators
  • Cell incubators and IVF stem cell incubators
  • Mask aligner
  • Fume hood / cabinet purge
  • 3D printer inerting
  • Glove box purge


Options
  • 10 L tank
  • 10 m tubing
  • Special 100% PTFE tubing


Technical specifications
  • Flow: 120 L/min
  • Purity: 95% @ 120 L/min; 98% @ 50 L/min
  • Dew point: -50ºC (-58ºF)
  • Outlet pressure (barg/psig): 7 (100)
  • Maximum stated pressure: up to 10 barg (160 psig)
  • Inlet pressure (barg/psig): 8.5 to 10 (123 to 160)
  • Actual inlet air requirement: 245 L/min
  • Recommended compressor inlet: 490 L/min
  • Pressure drop: 1.5 barg (22 psig)
  • Inlet air quality: Clean dry compressed air ISO8573-1:2010 Class 1.2.1
  • Technology: Membrane
  • Warm up time: none
  • Electrical supply: none
  • Noise level: none specified
  • Product dimensions (W x H x D): 480 x 1300 x 300 mm
  • Product weight: 20 kg (44 lb)
  • Shipping dimensions (W x H x D): 1270 x 375 x 590 mm
  • Shipping weight: 27 kg (60 lb)
  • Operating temperature: 15 to 35 ºC (59 to 95 ºF)
  • Inlet connection: 3/8" G
  • Outlet connection: 1/4" compression
  • Certification: CE
