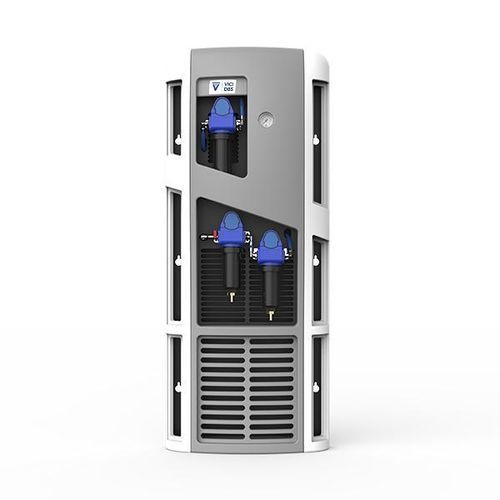

Dry nitrogen generator Whisper 0-40 Hybrid P-E Dual
high-purityfor LC/MSfor spectrometry

Dry nitrogen generator - Whisper 0-40 Hybrid P-E Dual - VICI AG International - high-purity / for LC/MS / for spectrometry
Dry nitrogen generator - Whisper 0-40 Hybrid P-E Dual - VICI AG International - high-purity / for LC/MS / for spectrometry
Dry nitrogen generator - Whisper 0-40 Hybrid P-E Dual - VICI AG International - high-purity / for LC/MS / for spectrometry - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
high-purity, dry
Applications
for LC/MS, for mass spectrometers, for spectrometry
Technology
membrane
Other characteristics
high-flow
Output

15 l/min, 70 l/min
(3.9626 us gal/min, 18.492 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

99 %

Description

Overview
The Whisper 0-40 Hybrid P-E Dual Nitrogen Generator is developed for LC/MS applications that require filtered, dried air and for solvent evaporation during sample analysis. It uses high-efficiency membrane separation to produce nitrogen from compressed air with a low pressure drop (1 barg), allowing use with an existing dry, oil-free laboratory compressed air source.

Features
  • Flow rates: curtain gas 15 L/min @ 7 barg (100 psig), source gas 70 L/min @ 7 barg (100 psig)
  • Nitrogen purity: 99%
  • Maximum outlet pressure: 7 barg (100 psig)
  • Minimal maintenance requirements
  • Integrated economy mode as standard
  • Proprietary membrane technology
  • 2 year standard warranty


Applications
  • LC/MS instruments (curtain, nebulizing, sheath, shield, electrospray gases)
  • Nebulizing gas for mass spectrometry
  • Shield and sheath gas for ionization sources
  • Electrospray gas supply
  • Compatibility with SCIEX and SHIMADZU LC/MS systems


Options
  • N/A


Technical specifications
  • Curtain gas flow rate L/min - Nitrogen: 15 @ 7 barg (100 psig)
  • Exhaust gas flow rate L/min - dry air: N/A
  • Source gas flow rate L/min - dry air: 70 @ 7 barg (100 psig)
  • Nitrogen purity at max flow rate: 99%
  • Dew point: -40ºC (-40ºF)
  • Outlet pressure (barg / psig): 7 (100)
  • Inlet pressure (barg / psig): 8.5 to 10 (123 to 160)
  • Actual inlet air requirement (liters): 220
  • Recommended compressor air requirements (liters): 440
  • Pressure drop (barg / psig): 1.5 (22)
  • Inlet air quality: Clean dry compressed air ISO8573-1:2010 Class 1.2.1
  • Technology: Membrane
  • Warm up time (minutes): None
  • Electrical supply: None
  • Noise level: None
  • Product dimensions (mm / in): 480W x 1300H x 300D (18.9W x 51H x 11.8D)
  • Product weight (kg / lb): 25 (55)
  • Shipping dimensions (mm / in): 1600W x 400H x 590D (63W x 15.7H x 23.2D)
  • Shipping weight (kg / lb): 32 (71)
  • Operating temperature (ºC / ºF): 15 to 35 (59 to 95)
  • Inlet connection: 3/8" G
  • Outlet connection: 6 mm or 1/4" OD compression
  • Certification: CE


Certifications & warranty
  • CE certified
  • 2 year standard warranty
