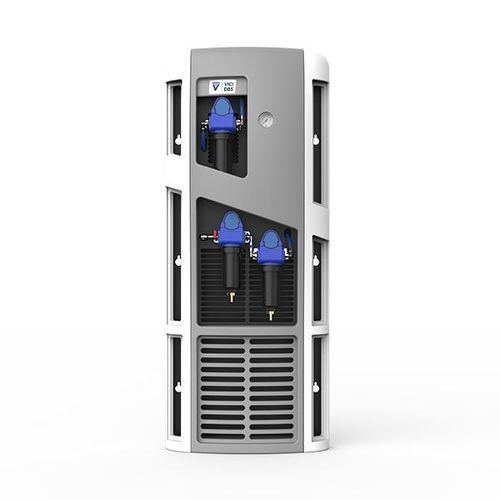

LC/MS nitrogen generator Whisper 0-40 Hybrid

compactmembrane

Overview
The Whisper 0-40 Hybrid P-E Single Nitrogen Generator is designed to supply filtered, dry nitrogen and air flows to meet the flow, purity and pressure requirements of LC/MS systems and solvent evaporation processes. High-efficiency membrane separation extracts nitrogen from compressed air with a low pressure drop, allowing use with existing dry, oil-free lab air supplies.

Features

• Flow rate - curtain gas: 40 L/min @ 7 bar (100 psi)
• Source gas flow: 70 L/min @ 7 bar (100 psi)
• Nitrogen purity: 99%
• Maximum outlet pressure: 7 bar (100 psi)
• Minimal maintenance and integrated economy mode
• Proprietary membrane technology
• 2 year standard warranty

Applications

• LC/MS instrument gas supply
• Nebulizing / curtain gas
• Shield and sheath gas
• Electrospray gas
• Compatibility with SCIEX LC/MS and SHIMADZU LC/MS systems

Options

• N/A

Product information
Part# DB-WN2-0-40-HY-P-E-S

Technical specifications

• Curtain gas flow rate (Nitrogen): 40 L/min @ 7 bar (100 psi)
• Exhaust gas flow rate (dry air): 25 L/min @ 4 bar (60 psi)
• Source gas flow rate (dry air): 22 L/min @ 7 bar (100 psi)
• Nitrogen purity at max flow: 99%
• Dew point: -40ºC
• Outlet pressure: 7 bar (100 psi)
• Inlet pressure: 8.5 to 10 bar (123 to 160 psi)
• Actual inlet air requirement: 197 L/min
• Recommended compressor air requirement: 394 L/min
• Pressure drop: 1.5 bar (22 psi)
• Inlet air quality: Clean, dry compressed air ISO8573-1:2010 Class 3.2.2
• Technology: Membrane
• Warm up time: None
• Electrical supply: None
• Noise level: None specified
• Product dimensions (W x H x D): 480 x 1300 x 300 mm (18.9 x 51 x 11.8 in)
• Product weight: 25 kg (55 lb)
• Shipping dimensions (W x H x D): 1270 x 375 x 590 mm (50 x 14.8 x 23.2 in)
• Shipping weight: 32 kg (71 lb)
• Operating temperature: 15 to 35ºC (59 to 95ºF)
• Inlet connection: 3/8" G
• Outlet connection: 6 mm OD compression or 1/4"
• Certification: CE
