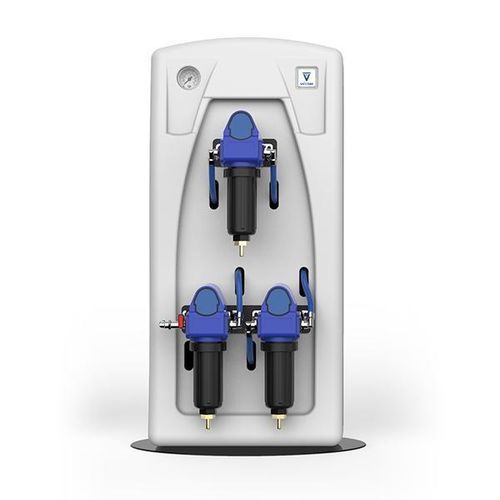

Pure nitrogen generator Mini Whisper
for LC/MSfor laboratory analyzersNMR

Pure nitrogen generator - Mini Whisper - VICI AG International - for LC/MS / for laboratory analyzers / NMR
Pure nitrogen generator - Mini Whisper - VICI AG International - for LC/MS / for laboratory analyzers / NMR
Pure nitrogen generator - Mini Whisper - VICI AG International - for LC/MS / for laboratory analyzers / NMR - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
pure
Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, NMR
Configuration
not specified
Technology
membrane
Output

10 l/min, 12 l/min
(2.6417 us gal/min, 3.1701 us gal/min)

Output pressure

7 bar
(101.53 psi)

Gas purity

99 %

Description

Overview
The Mini Whisper Nitrogen Generator is designed to deliver a stable nitrogen supply for light scattering detectors, LC‑MS interfaces and a range of laboratory instruments. It employs high‑efficiency membrane separation to extract nitrogen from compressed air with a low pressure drop, allowing use with existing dry, oil‑free compressed air sources.

MINI WHISPER FEATURES:
  • Flow rate 12 L/min
  • Purity 99% @ 12 L/min / 99% at 10 L/min
  • Pressure up to 7 barg (100 psig)
  • Minimal maintenance
  • Integrated economy mode as standard
  • Proprietary membrane technology
  • 2 year standard warranty


Applications
  • Products for LC/MS instruments
    • Nebulizing gas
    • Curtain gas
    • Shield gas
    • Sheath gas
    • Electrospray gas
    • APCI gas
    • Jet stream gradient
  • Products for spectroscopy
    • Nuclear Magnetic Resonance spectrometers (NMR)
  • Products for analyzers
    • Thermal analyzers (TGA/DSC)
  • Other lab applications
    • Sample concentrators
    • Evaporative light scattering detector (ELSD)
    • Corona detectors
    • Charged aerosol (CAD)
    • Sample evaporators
    • Cell incubators
    • IVF stem cell incubators
    • Mask aligner
    • Fume hood / cabinet purge
    • 3D printer inerting
    • Glove box purge


Options
The following options are available: N/A

Product Brochure
Product brochure available as PDF.

Technical specifications
  • Flow L/min: 12
  • Purity: 99% @ 12 L/min / 99% at 10 L/min
  • Dew point: -50°C (-58°F)
  • Outlet pressure: 7 barg (100 psig)
  • Inlet pressure: 8.5 to 10 barg (123 to 160 psig)
  • Actual inlet air requirement: 60 liters
  • Recommended compressor air inlet: 120
  • Pressure drop: 1.5 barg (22 psig)
  • Inlet air quality: Clean dry compressed air ISO8573-1:2010 Class 1.2.1
  • Technology: Membrane
  • Warm up time: none
  • Electrical supply: none
  • Noise level: none
  • Product dimensions: 348W x 735H x 350D mm (13.7W x 29H x 13.8D)
  • Product weight: 8 kg (17.6 lbs)
  • Shipping dimensions: 890W x 445H x 3530D mm (35W x 17.5H x 20.8D)
  • Shipping weight: 14 kg (31 lbs)
  • Operating temperature: 15 to 35°C (59 to 95°F)
  • Inlet connection: 3/8" G
  • Outlet connection: 1/4" compression
  • Certification: CE
