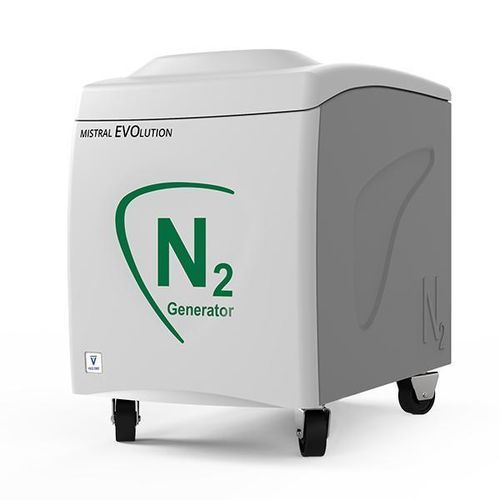

High-purity nitrogen generator Mistral Evolution 10
for LC/MSNMRfor mass spectrometers

High-purity nitrogen generator - Mistral Evolution 10 - VICI AG International - for LC/MS / NMR / for mass spectrometers
High-purity nitrogen generator - Mistral Evolution 10 - VICI AG International - for LC/MS / NMR / for mass spectrometers
High-purity nitrogen generator - Mistral Evolution 10 - VICI AG International - for LC/MS / NMR / for mass spectrometers - image - 2
Add to favorites
Compare this product

Characteristics

Gas characteristics
high-purity
Applications
for LC/MS, for mass spectrometers, NMR
Configuration
plug-and-play
Technology
PSA, CMS, molecular carbon sieve
Other characteristics
with compressor
Output

10 l/min
(2.6417 us gal/min)

Output pressure

3 bar
(43.51 psi)

Gas purity

99.5 %

Rated capacity

1,800 W
(2.4 hp)

Description

Overview
The Mistral Evolution 10 nitrogen generator (PSA technology) with integral oil-free air compressor provides a continuous supply of nitrogen >99.5% at 10 L/min. The PSA system adsorbs oxygen, carbon dioxide and water from compressed air to produce a reliable inert gas stream suitable for LC/MS and other laboratory inerting applications.

Key Features
  • Flow rate: 10 L/min
  • Purity: >99.5%
  • Outlet pressure: up to 3 barg (43 psig)
  • Integral oil-free, low-noise compressor options
  • Proprietary carbon molecular sieve (PSA)
  • Complete plug-and-play LC/MS solution
  • 2 year standard warranty

Part Numbers
  • Part# DB-EVO-10-EU (220V/50Hz)
  • Part# DB-EVO-10-US (115V/60Hz NEMA 5-20P)

Applications
  • LC/MS nebulizing gas
  • LC/MS curtain gas
  • LC/MS shield gas
  • LC/MS sheath gas
  • LC/MS electrospray gas
  • LC/MS APCI gas
  • Jet stream gradient for LC/MS
  • NMR spectroscopy gas supply
  • TGA/DSC thermal analyzers
  • Sample concentrators
  • Evaporative light scattering detectors (ELSD)
  • Corona and charged aerosol detectors (CAD)
  • Sample evaporators
  • Cell and IVF incubator inerting
  • Mask aligner purge
  • Fume hood / cabinet purge
  • 3D printer inerting
  • Glove box purge

Options
  • 10 liter tank

Technical specifications
  • Nitrogen flow rate: 10 L/min
  • Nitrogen purity: >99.5%
  • Dewpoint: -50°C (-58°F)
  • Outlet pressure: 3 barg (43 psig)
  • Technology: Carbon molecular sieve (PSA)
  • Warm up time: 20 minutes
  • LED indicators: Power on/off, system ready, errors
  • Electrical supply: 220-240V 50Hz / 110-120V 60Hz (NEMA 5-20P)
  • Power consumption: 1800 W
  • Product dimensions (W x H x D): 482 x 641 x 835 mm (18.9 x 25 x 37 in)
  • Product weight: 90 kg (198 lb)
  • Shipping dimensions (W x H x D): 550 x 800 x 940 mm (21.6 x 31.4 x 37 in)
  • Shipping weight: 115 kg (254 lb)
  • Operating temperature: 15 to 35°C (59 to 95°F)
  • Outlet connection: 6 mm OD compression or 1/4"
  • Certification: CE, FCC, MET (UL and CSA compliant)
