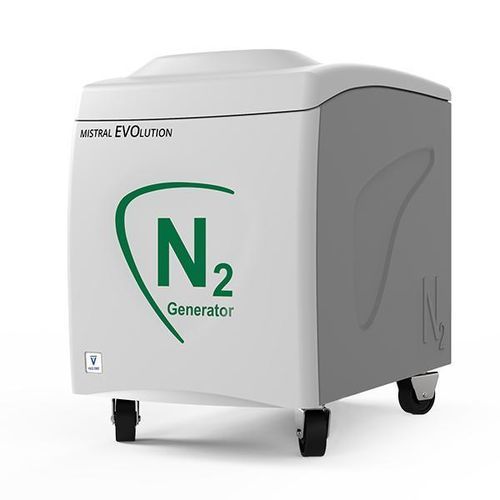

LC/MS nitrogen generator Mistral Evolution 40
for spectrometryfor laboratory analyzersNMR

LC/MS nitrogen generator - Mistral Evolution 40 - VICI AG International - for spectrometry / for laboratory analyzers / NMR
LC/MS nitrogen generator - Mistral Evolution 40 - VICI AG International - for spectrometry / for laboratory analyzers / NMR
LC/MS nitrogen generator - Mistral Evolution 40 - VICI AG International - for spectrometry / for laboratory analyzers / NMR - image - 2
Add to favorites
Compare this product

Characteristics

Applications
for LC/MS, for mass spectrometers, for laboratory analyzers, for spectrometry, NMR
Configuration
compact, plug-and-play
Technology
PSA, CMS, molecular carbon sieve
Other characteristics
with compressor
Output

40 l/min
(10.5669 us gal/min)

Output pressure

8 bar
(116.03 psi)

Gas purity

97 %

Rated capacity

1,800 W
(2.4 hp)

Description

Description
The Mistral Evolution 40 nitrogen generator uses pressure swing adsorption (PSA) with a proprietary carbon molecular sieve and an integral oil-free air compressor to deliver a continuous, on-demand supply of nitrogen at 97% purity and 40 L/min. Designed for laboratory and industrial inert-gas applications, the unit provides a compact, plug-and-play alternative to gas cylinders and reduces operating overhead for LC/MS workflows and other analytical systems.

Features
  • Flow rate: 40 L/min
  • Purity: 97%
  • Outlet pressure: up to 8 barg (116 psig)
  • Oil-free, low-noise compressor options
  • Proprietary carbon molecular sieve (PSA) technology
  • Complete plug-and-play LC/MS solution
  • 2 year standard warranty

Applications
  • Products for LC/MS instruments
    • Nebulizing gas
    • Curtain gas
    • Shield gas
    • Sheath gas
    • Electrospray gas
    • APCI gas
    • Jet stream gradient
  • Products for spectroscopy
    • Nuclear Magnetic Resonance spectrometers (NMR)
  • Products for analyzers
    • Thermal analyzers (TGA/DSC)
  • Other lab applications
    • Sample concentrators
    • Evaporative Light Scattering Detector (ELSD)
    • Corona detectors
    • Charged aerosol (CAD)
    • Sample evaporators
    • Cell incubators
    • IVF stem cell incubators
    • Mask aligner
    • Fume hood / cabinet purge
    • 3D printer inerting
    • Glove box purge

Part numbers / Options
  • Part# DB-EVO-40-EU (220V/50Hz)
  • Part# DB-EVO-40-US (115V/60Hz NEMA 5-20P)
  • Optional 10 liter tank

Technical specifications
  • Nitrogen flow rate: 40 L/min
  • Nitrogen purity: 97%
  • Dew point: -50 °C (-58 °F)
  • Outlet pressure: up to 8 barg (116 psig)
  • Technology: Carbon molecular sieve (PSA)
  • Warm up time: 20 minutes
  • LED indicators: Power on/off, system ready, errors
  • Electrical supply: 220-240V 50Hz / 110-120V 60Hz (NEMA 5-20P)
  • Power consumption: 1800 W
  • Product dimensions: 482 W x 641 H x 835 D mm (18.9 W x 25 H x 33 D in)
  • Product weight: 90 kg (198 lbs)
  • Shipping dimensions: 550 W x 800 H x 940 D mm (21.6 W x 31.4 H x 37 D in)
  • Shipping weight: 115 kg (254 lbs)
  • Operating temperature: 15 to 35 °C (59 to 95 °F)
  • Outlet connection: 6 mm OD compression or 1/4"
  • Certification: CE, FCC, MET (UL and CSA compliant)
