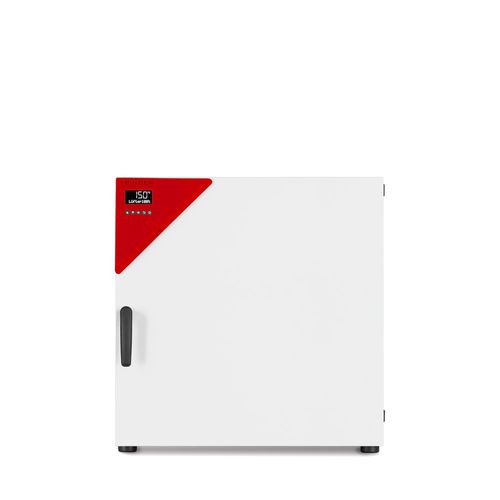

Heating oven ED 115

dryinglaboratorynatural convection

Product description
The ED 115 drying and heating chamber performs routine drying and sterilization tasks up to +300 °C. Natural convection ensures fast, uniform temperature distribution across the interior. APT.line™ technology provides high temporal and spatial temperature accuracy, while the LCD controller and USB port enable process monitoring and data recording.

Benefits

• High energy efficiency (up to 30% less consumption vs conventional units)
• Excellent temperature uniformity and low fluctuation
• USB connection for data logging and traceability
• Temperature capability up to +300 °C

Key features

• Temperature range: from +5 °C above ambient to +300 °C
• Natural convection for even, gentle heating
• APT.line™ technology for precise temperature control
• Controller with LCD display and USB port
• Electromechanical control of exhaust air flap
• Stackable design with 2 chrome-plated racks (standard)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design

General data
Article Number: 9010-0335 | 9010-0336
Designation: ED115-230V | ED115UL-120V
Model version: Standard

Performance data – Temperature
Temperature range: +5 °C above ambient to 300 °C
Temperature uniformity at 150 °C: 1.5 ± K
Temperature fluctuation at 150 °C: 0.4 ± K
Heating time to 150 °C: 45 min
Recovery time after 30 s door opening at 150 °C: 16 min

Air change data
Air change rate at 100 °C: 6 x/h

Electrical data
Rated Voltage: 9010-0335 = 230 V, 9010-0336 = 120 V
Power frequency: 9010-0335 = 50/60 Hz, 9010-0336 = 60 Hz
Nominal power: 9010-0335 = 1.25 kW, 9010-0336 = 1.35 kW
Unit fuse: 9010-0335 = 6.3 A, 9010-0336 = 12.5 A
Phase: 1~ (both variants)

Dimensions and weights
Interior volume: 114 L
Net weight (empty): 54 kg
Load per rack: 30 kg (max per rack)
Permitted total load: 150 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (not incl. fittings and connections)
Width net: 710 mm
Height net: 705 mm
Depth net: 605 mm

Internal dimensions
Interior width: 510 mm
Interior height: 530 mm
Interior depth: 425 mm
Unit doors: 1

Environment-specific data
Energy consumption at 100 °C: 140 Wh/h
Energy consumption at 150 °C: 245 Wh/h

Fixtures
Number of shelves (std./max.): 2/5

Technical specifications

• Model: ED 115
• Temperature range: +5 °C above ambient to +300 °C
• Interior volume: 114 L
• Rated voltage options: 230 V (ED115-230V) and 120 V (ED115UL-120V)
• Nominal power: 1.25 kW (230 V) / 1.35 kW (120 V)
• Interior dimensions (W×H×D): 510 × 530 × 425 mm
• Net weight (empty): 54 kg
• Standard shelves: 2 (max 5), max load per rack 30 kg, total permitted load 150 kg
• Temperature uniformity at 150 °C: 1.5 ± K; fluctuation: 0.4 ± K
• Heating time to 150 °C: approx. 45 min; recovery time after 30 s door opening at 150 °C: 16 min
• Air change rate at 100 °C: 6 x/h
• Energy consumption at 100 °C / 150 °C: 140 Wh/h / 245 Wh/h
• Controller with LCD display; USB port for data recording
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
