Heating oven ED-S 115

dryingfor scientific researchlaboratory

Product description

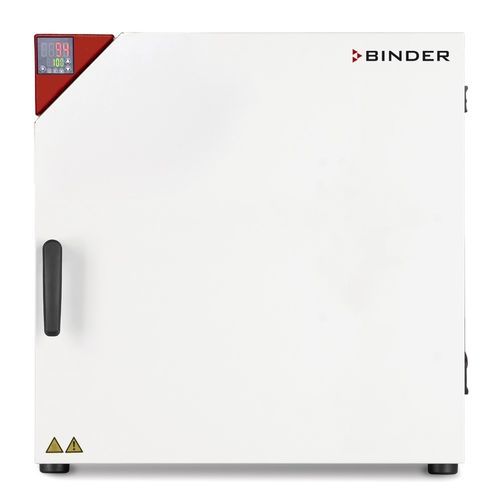

The Solid.Line ED-S 115 from BINDER is a drying and heating chamber designed for applications in research and quality assurance. It provides controlled heating by natural convection and an APT.line™ preheating chamber for reliable temperature performance.

Benefits

• Easy handling
• Accurate temperature control
• Simple and ergonomic door opening

Important characteristics

• Temperature range: +7 °C above ambient temperature to +250 °C
• APT.line™ preheating chamber technology
• Natural convection
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack, including shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Technical data
Article Number: 9090-0020; 9090-0021
Designation: EDS115-230V; EDS115UL-120V
Option model: Standard

Performance Data Temperature
Temperature range: +7 °C above ambient temperature to 250 °C
Temperature uniformity at 150°C: 2.8 ± K
Temperature fluctuation at 150°C: 0.9 ± K
Heating up time to 150°C: 55 min
Recovery time after door was opened for 30 s at 150°C: 40 min

Electrical data
Rated Voltage: 230 V; 120 V
Power frequency: 50/60 Hz (230 V); 60 Hz (120 V)
Nominal power: 1,25 kW (230 V); 1,35 kW (120 V)
Unit fuse: 6,3 A
Phase (Nominal voltage): 1~

Dimensions and weights
Interior volume: 118 L
Net weight (empty): 50 kg
Load per rack: 20 kg
Permitted load: 75 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (net)
Width net: 764 mm
Height net: 735 mm
Depth net: 616 mm

Internal dimensions
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 390 mm
Unit doors: 1

Environment-specific data
Energy consumption at 150°C: 300 Wh/h

Fixtures
Number of shelves (std./max.): 1/5

Characteristics / technical specifications

• Model: ED-S 115
• Use: drying and heating chamber with natural convection
• Temperature range: +7 °C above ambient to 250 °C
• Interior volume: 118 L
• Interior dimensions (W×H×D): 550 × 550 × 390 mm
• Rated voltage options: 230 V (nominal power 1,25 kW) and 120 V (nominal power 1,35 kW)
• Temperature uniformity at 150°C: 2.8 ± K; fluctuation at 150°C: 0.9 ± K
• Heating up time to 150°C: 55 min; Recovery time after 30 s door opening at 150°C: 40 min
• Net weight: 50 kg; Permitted load: 75 kg; Load per rack: 20 kg
• Number of shelves (std./max.): 1/5
