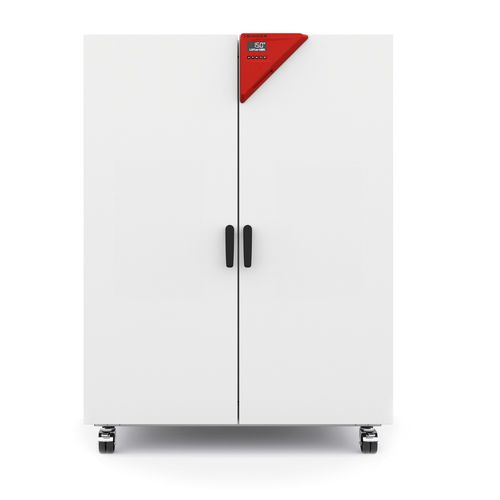

Heating oven FD 720

dryingfor general applicationslaboratory

Product description
The BINDER FD Avantgarde.Line drying and heating oven FD 720 is designed for applications requiring rapid drying and sterilization with highly uniform temperature distribution. Fast dynamics and a powerful fan ensure short process times and reproducible results.

Benefits

• Best energy efficiency in its class
• Excellent temporal and spatial temperature accuracy
• USB port for data recording
• Operating temperature up to 300 °C

Important characteristics

• Temperature range: from +12 °C above ambient to +300 °C
• Up to 30% lower energy consumption versus conventional units
• High temperature accuracy thanks to APT.line™ technology
• Forced convection with powerful fan (option: reinforced fan)
• Controller with LCD display and USB for data logging
• Electromechanical exhaust air flap control
• 2 chrome-plated racks (standard), up to 16 positions
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm

Technical specifications — Data
Article Number: 9010-0311
Designation: FD720-400V
Option model: Standard

Technical specifications — Performance Data Temperature
Article Number: 9010-0311
Temperature range: +12 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 2.5 ± K
Temperature fluctuation at 150 °C: 0.6 ± K
Heating up time to 150 °C: 25 min
Recovery time after door opened for 30 s at 150 °C: 6 min

Technical specifications — Air change data
Article Number: 9010-0311
Air change rate at 100 °C: 5 x/h

Technical specifications — Electrical data
Article Number: 9010-0311
Rated voltage: 400 V
Power frequency: 50/60 Hz
Nominal power: 4.5 kW
Unit fuse: 16.0 A
Phase (Nominal voltage): 3~/N/PE

Technical specifications — Dimensions and weights
Article Number: 9010-0311
Interior volume: 741 L
Net weight (empty): 166 kg
Load per rack: 45 kg
Permitted total load: 315 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Technical specifications — Housing dimensions (not incl. fittings and connections)
Article Number: 9010-0311
Width net: 1,165 mm
Height net: 1,590 mm
Depth net: 870 mm

Technical specifications — Internal Dimensions
Article Number: 9010-0311
Interior width: 1,000 mm
Interior height: 1,300 mm
Interior depth: 570 mm
Unit doors: 2

Technical specifications — Environment-specific data
Article Number: 9010-0311
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 480 Wh/h
Energy consumption at 150 °C: 800 Wh/h

Technical specifications — Fixtures
Article Number: 9010-0311
Number of shelves (std./max.): 2/16

Options, accessories & services (selected items)

• Ethernet interface for APT-COM™ (8012-0989)
• Access ports with silicone plugs (various positions/sizes)
• Reinforced fan (8012-1062) for increased air change rates (option)
• HEPA H14 filter on fresh air supply (8012-1099)
• Door lock, interior lighting, viewing window options
• Calibration certificates and temperature measurement services
• APT-COM™ software editions and maintenance contracts (IQ/OQ/PQ available)

Features / technical summary

• Model: FD 720 (FD Avantgarde.Line)
• Article Number: 9010-0311 — Designation: FD720-400V
• Temperature range: +12 °C above ambient to 300 °C
• Uniformity at 150 °C: 2.5 ± K — Fluctuation: 0.6 ± K
• Heating time to 150 °C: 25 min — Recovery time after 30 s door opening at 150 °C: 6 min
• Interior volume: 741 L — Net weight: 166 kg
• Forced convection with powerful (optionally reinforced) fan — Air change rate 5 x/h at 100 °C
• Controller with LCD and USB data recording — APT.line™ temperature control
• Class 2 adjustable safety thermostat (DIN 12880) with visual alarm
• Electrical: 400 V, 50/60 Hz, 4.5 kW, fuse 16.0 A, 3~/N/PE
