Heating oven FD 260

dryingfor general applicationslaboratory

Product description

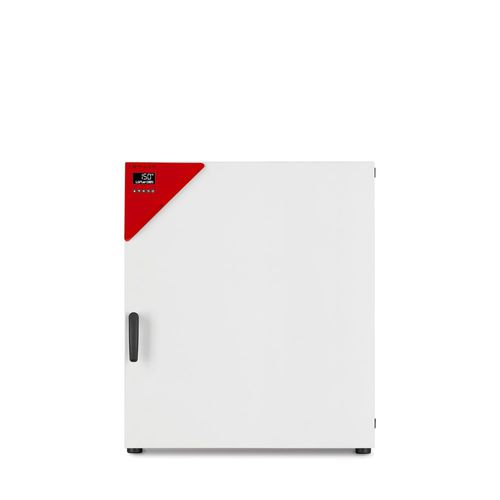

A BINDER FD 260 drying and heating chamber from the Avantgarde.Line series is designed for fast drying and sterilization. Its homogeneous temperature distribution, fast dynamic response and powerful fan reduce cycle times and ensure repeatable results.

Benefits

• Market-leading energy efficiency
• High temporal and spatial temperature accuracy (APT.line™)
• USB port for data logging
• Operating range up to 300 °C

Important characteristics

• Temperature range: from ambient +10 °C to 300 °C
• Up to 30% lower energy consumption vs. conventional units
• Forced convection (circulating air)
• Controller with LCD display
• Electromechanical exhaust air flap control
• 2 chrome-plated racks (standard), up to 8 positions
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• USB interface for data recording

Technical specifications (Data)
Article Number: 9010-0309 | 9010-0310
Designation: FD260-230V | FD260UL-240V
Option model: Standard

Performance Data — Temperature
Temperature range: +10 °C above ambient to 300 °C
Temperature uniformity at 150 °C: 1.9 ± K
Temperature fluctuation at 150 °C: 0.4 ± K
Heating up time to 150 °C: 19 min
Recovery time after door opened 30 s at 150 °C: 5 min

Air change data
Air change rate at 100 °C: 9 x/h

Electrical data
Rated voltage: 230 V | 240 V
Power frequency: 50/60 Hz (230 V) | 60 Hz (240 V)
Nominal power: 2.3 kW (230 V) | 2.5 kW (240 V)
Unit fuse: 12.5 A (230 V) | 16.0 A (240 V)
Phase: single-phase (1~)

Dimensions and weights
Interior volume: 259 L
Net weight (empty): 85 kg
Load per rack: 40 kg
Permitted total load: 270 kg
Wall clearance back: 160 mm
Wall clearance side: 100 mm

Housing dimensions (not incl. fittings and connections)
Width (net): 810 mm
Height (net): 940 mm
Depth (net): 825 mm

Internal dimensions
Interior width: 650 mm
Interior height: 780 mm
Interior depth: 515 mm
Unit doors: 1

Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 245 Wh/h
Energy consumption at 150 °C: 410 Wh/h

Fixtures
Number of shelves (std./max.): 2 / 8

Options and accessories (selection)

• Observation window and interior lighting (triple glazing 370 x 370 mm + 15 W light) — ref. 8012-1708
• Access port with silicone plug (left 100 mm) — ref. 8012-1027
• HEPA filter (H14) for fresh-air inlet — ref. 8012-1052
• Ethernet interface for APT-COM™ — ref. 8012-0988
• Calibration and qualification certificates/services available

Notes
Information above summarizes the product description, main advantages, available options and key technical data.
