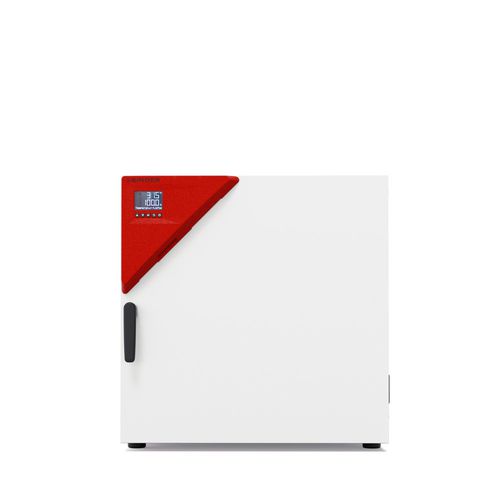

Heating oven FP 115

dryinglaboratoryfor general purposes

Product description
A BINDER FP series material test chamber FP 115 delivers short drying times and fast heating with reliable performance under load. Programmable functions and an adjustable fan enable precise control of temperature and forced-convection conditions for routine laboratory and production tasks.

Benefits

• High temperature accuracy thanks to APT.line™ technology
• User-friendly controller with large display and real-time/interval programming
• Computer interface: Ethernet
• Selectable independent temperature safety devices: Class 2 and Class 3.1 (DIN 12880) with visual/acoustic alarm

Important characteristics

• Temperature range: +10 °C above ambient up to +300 °C
• High temperature accuracy (APT.line™)
• Adjustable fan speed and electromechanical exhaust flap control
• Controller with interval and real-time programming
• Internal data logger; measured values readable in open format via USB
• 2 chrome-plated racks (standard); units up to 115 L stackable
• Ergonomic handle design and compact footprint for lab/production environments
• Computer interface: Ethernet

Technical specifications (selected tables)
Data
Article Number: 9010-0364 | 9010-0368
Designation: FP115-230V | FP115UL-120V
Option model: Standard

Performance Data Temperature
Article Number: 9010-0364 | 9010-0368
Temperature range: +10 °C above ambient temperature to 300 °C
Temperature uniformity at 150°C: 1.4 ± K
Temperature fluctuation at 150°C: 0.3 ± K
Heating up time to 150°C: 19 min
Recovery time after door was opened for 30 s at 150°C: 5 min

Air change data
Article Number: 9010-0364 | 9010-0368
Air change rate at 100°C: 32 x/h

Electrical data
Article Number: 9010-0364 | 9010-0368
Rated Voltage: 230 V (9010-0364) | 120 V (9010-0368)
Power frequency: 50/60 Hz (9010-0364) | 60 Hz (9010-0368)
Nominal power: 1,4 kW
Unit fuse: 10,0 A (9010-0364) | 16,0 A (9010-0368)
Phase (Nominal voltage): 1~

Dimensions and weights
Article Number: 9010-0364 | 9010-0368
Interior volume: 116 L
Net weight of the unit (empty): 55 kg
Load per rack: 30 kg
Permitted load: 150 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (net)
Width net: 714 mm
Height net: 732 mm
Depth net: 636 mm

Internal Dimensions
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 383 mm
Unit doors: 1

Environment-specific data
Article Number: 9010-0364 | 9010-0368
Sound-pressure level: 43 dB(A)
Energy consumption at 100°C: 230 Wh/h
Energy consumption at 150°C: 370 Wh/h

Fixtures
Article Number: 9010-0364 | 9010-0368
Number of shelves (std./max.): 2/5

Notes
Selected accessories and options available: interior lighting, inert gas connection, access ports (various sizes/positions), gas-tight option model, HEPA air filter on fresh air supply, reinforced inner chamber, door gasket (FKM), door lock, analog output 4-20 mA, Pt100 temperature sensor, calibration certificates and a variety of service and qualification options.
