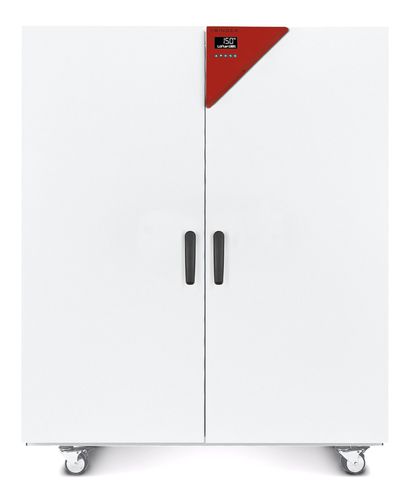

Heating oven FED 720

dryinglaboratoryforced convection

Product description
BINDER FED Avantgarde.Line drying and heating chambers combine large interior volume with adjustable forced convection and enhanced timer functions. The controllable fan and advanced timing allow precise control of temperature distribution and process sequences, suitable for testing, drying and heating applications in industrial laboratories.

Benefits

• Optimised energy use and controlled air circulation
• High temporal and spatial temperature accuracy
• Data recording via USB and network connectivity
• Operating range up to 300 °C

Important characteristics

• Temperature range: from +12 °C above ambient up to +300 °C
• Up to 30% lower energy consumption vs. conventional units
• APT.line™ technology for improved temperature accuracy
• Adjustable fan speed and electromechanical exhaust control
• Controller with LCD and enhanced timer functions
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Standard: 2 chrome-plated racks (expandable up to 16)
• Interfaces: USB (data recording) and Ethernet

Technical specifications (key data)
General data
Article Number: 9010-0301 | 9010-0302
Designation: FED720-400V | FED720UL-208V
Version: Standard

Temperature performance
Temperature range: +12 °C above ambient to 300 °C
Temperature uniformity at 150 °C: 2.0 ± K
Temperature fluctuation at 150 °C: 0.6 ± K
Heating time to 150 °C: 25 min
Recovery time after 30 s door opening at 150 °C: 6 min

Air change
Air change rate at 100 °C: 5 x/h

Electrical data
Rated voltage: 400 V (9010-0301) | 208 V (9010-0302)
Power frequency: 50/60 Hz (400 V) | 60 Hz (208 V)
Rated power: 4.5 kW
Unit fuse: 16.0 A

Dimensions & weights
Interior volume: 741 L
Net weight (empty): 166 kg
Load per rack: 45 kg | Permitted total load: 315 kg
Wall clearance back/side: 160 mm / 100 mm
Housing dims (W×H×D): 1,165 × 1,590 × 870 mm (net)
Internal dims (W×H×D): 1,000 × 1,300 × 570 mm
Doors: 2

Environment & performance
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 480 Wh/h
Energy consumption at 150 °C: 800 Wh/h

Options, accessories & services (selection)

• Reinforced fan (increased air change rates; max. 300 °C)
• Interior lighting (2 × 27 W or 30 W option with viewing window)
• Lockable door handle and viewing window (triple-glazed)
• HEPA H14 fresh-air filter
• Access ports with silicone plugs (various positions/diameters)
• Calibration certificates and extended temperature measurement points (9/18/27)
• Analog output 4–20 mA, overtemperature alarm (acoustic option)
• Service options: maintenance contracts, calibration, IQ/OQ/PQ, commissioning, warranty extension
• Software: APT-COM™ (Basic / Professional / GLP)

Summary specifications

• Model: FED 720
• Brand: BINDER
• Temperature range: +12 °C above ambient to +300 °C
• Interior volume: 741 L
• Rated power: 4.5 kW
• Temperature uniformity at 150 °C: 2.0 ± K; fluctuation 0.6 ± K
• Heating time to 150 °C: 25 min; recovery time after 30 s door opening: 6 min
• Air change at 100 °C: 5 x/h
• Shelves (std./max.): 2 / 16; load per shelf: 45 kg
• Interfaces: USB, Ethernet
• Safety device: Class 2 independent adjustable (DIN 12880) with visual alarm
