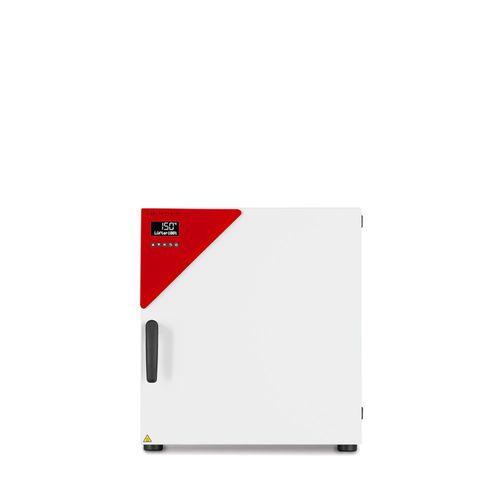

Heating oven FED 56

dryingfor general applicationslaboratory

Product description
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.

Benefits

• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to 300 °C

Important characteristics

• Temperature range: +10 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with LCD display and enhanced time functions
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks (standard)
• Stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• Ethernet interface
• USB port for recording data

Options, accessories & services (selection)

• Interior lighting (27 W light bulb) — option
• Viewing window (triple‑glazed insulating glass 240 x 240 mm) + interior lighting (15 W) — option (not combinable with certain alarms)
• Door gasket made of FKM, silicone-free
• Gas-tight option model (measures for increased impermeability to gas)
• Inert gas connection (gas inlet/outlet Ø 10 mm)
• HEPA air filter (H14) on fresh air supply
• Reinforced heating output — faster heating and improved recovery time (230 V option)
• Inner chamber reinforced (max. total load 85 kg)
• Multiple calibration certificate options (expanded, temperature, 9/18/27 measuring points)
• Pt100 temperature sensor (additional flexible interior sensor)
• Analog output 4-20 mA for temperature values
• Alarm function for overheating (acoustic, switchable) — option
• Clock (battery-backed)
• Class 3.1 independent temperature safety device with visual alarm — option
• Various access ports with silicone plug (10 / 30 / 50 / 100 mm; positions: left/right/top)
• Door lock (lockable door handle)
• Services: maintenance contracts (BRONZE / SILVER / GOLD), calibration, IQ/OQ/PQ execution, unit commissioning, instruction, warranty extension

Technical data (selected tables)
Article Number: 9010-0295 / 9010-0296
Designation: FED056-230V / FED056UL-120V
Option model: Standard

Performance data - Temperature:
Temperature range: +10 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 1.4 ± K
Temperature fluctuation at 150 °C: 0.3 ± K
Heating up time to 150 °C: 15 min
Recovery time after door opened 30 s at 150 °C: 4 min

Air change data:
Air change rate at 100 °C: 80 x/h

Electrical data:
Rated voltage: 230 V (9010-0295) / 120 V (9010-0296)
Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
Nominal power: 1.1 kW (230 V) / 1.2 kW (120 V)
Unit fuse: 6.3 A (230 V) / 12.5 A (120 V)
Phase (Nominal voltage): 1~

Dimensions & weights:
Interior volume: 60 L
Net weight (unit empty): 39 kg
Load per rack: 30 kg
Permitted load: 70 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm
Width net: 560 mm
Height net: 625 mm
Depth net: 565 mm

Internal dimensions:
Interior width: 400 mm
Interior height: 440 mm
Interior depth: 345 mm
Unit doors: 1

Environment-specific data:
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 180 Wh/h
Energy consumption at 150 °C: 290 Wh/h

Characteristics / technical specifications

• Model: FED 56 (Designation: FED056-230V / FED056UL-120V)
• Article numbers: 9010-0295 (230 V) ; 9010-0296 (120 V)
• Temperature range: +10 °C above ambient to +300 °C
• Temperature uniformity (150 °C): 1.4 ± K; fluctuation: 0.3 ± K
• Heating up time to 150 °C: 15 min; recovery time after 30 s door opening at 150 °C: 4 min
• Air change rate (100 °C): 80 x/h
• Rated voltage options: 230 V / 120 V; nominal power: 1.1 kW (230 V) / 1.2 kW (120 V)
• Interior volume: 60 L; internal dims: W 400 x H 440 x D 345 mm
• Net weight: 39 kg; permitted load total: 70 kg; load per rack: 30 kg; shelves std./max.: 2/4
• Net dimensions (housing): W 560 x H 625 x D 565 mm
• Interfaces: USB (data recording), Ethernet
• Control: LCD controller with enhanced time functions; adjustable fan speed; electromechanical exhaust flap control
• Safety: Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm (optionally class 3.1 device available)
• Sound level: 43 dB(A)
• Energy consumption examples: 180 Wh/h at 100 °C; 290 Wh/h at 150 °C
• Options: interior lighting, viewing window, HEPA filter, gas-tight measures, reinforced heating, access ports, additional sensors, calibration services, maintenance contracts, IQ/OQ/PQ services
