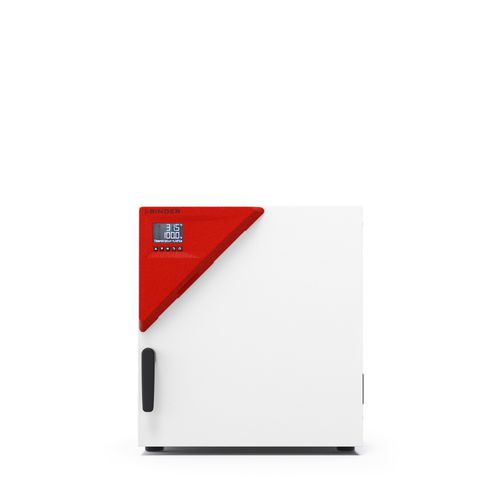

Heating oven FP 56

dryinglaboratoryfor general purposes

Product description
A BINDER FP series material test chamber delivers short drying times and rapid heating using forced convection. The programmable controller and adjustable fan enable precise temperature and airflow control for routine tests and prolonged cycles.

Benefits

• High temperature accuracy thanks to APT.line™ technology
• User‑friendly controller with large display and Ethernet interface
• Selectable independent temperature safety devices: Class 2 and Class 3.1 (DIN 12880) with visual/acoustic alarm
• Internal data logger; measured values exportable via USB in open format

Important characteristics

• Temperature range: from ambient +10 °C to 300 °C
• Adjustable fan speed for tailored convection
• Controller with interval and real‑time programming
• Electromechanical control of exhaust air flap
• 2 chrome‑plated racks (standard); up to 4 positions (2/4)
• Units up to 115 L are stackable
• Ergonomic handle design

Technical data (summary)
Article number: 9010‑0363 / 9010‑0367
Designation examples: FP056‑230V (9010‑0363) / FP056UL‑120V (9010‑0367)
Option model: Standard

Performance data — Temperature
Temperature range: ambient +10 °C to 300 °C
Spatial temperature uniformity at 150 °C: 1.4 ± K
Temporal temperature fluctuation at 150 °C: 0.4 ± K
Heating time to 150 °C: 15 min
Recovery time after 30 s door opening at 150 °C: 4 min

Air change data
Air change rate at 100 °C: 80 x/h

Electrical data
Rated voltage: 230 V (9010‑0363) / 120 V (9010‑0367)
Power frequency: 50/60 Hz (230 V) / 60 Hz (120 V)
Nominal power: 1.2 kW
Unit fuse: 10.0 A (230 V) / 16.0 A (120 V)
Phase (nominal voltage): 1~

Dimensions and weights
Interior volume: 60 L
Net weight (empty): 41 kg
Load per rack: 30 kg
Permitted total load: 70 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing / Internal dimensions
Width net: 560 mm
Height net: 622 mm
Depth net: 596 mm
Interior width: 400 mm
Interior height: 440 mm
Interior depth: 342 mm
Unit doors: 1

Fixtures
Number of shelves (std./max.): 2 / 4

Downloads & accessories
Brochures, data sheets and operating manuals available on the product page (PDFs).

Technical specifications — summary

• Model: FP 56
• Article numbers: 9010‑0363 (230 V), 9010‑0367 (120 V)
• Temperature range: ambient +10 °C to 300 °C
• Interior volume: 60 L
• External dimensions (W×H×D): 560 × 622 × 596 mm
• Internal dimensions (W×H×D): 400 × 440 × 342 mm
• Net weight: 41 kg
• Nominal power: 1.2 kW
• Voltage: 230 V or 120 V (variant)
• Air change rate @100 °C: 80 x/h
• Sound level: 43 dB(A)
• Energy consumption @100 °C / @150 °C: 180 Wh/h / 290 Wh/h
• Shelves std./max.: 2 / 4
