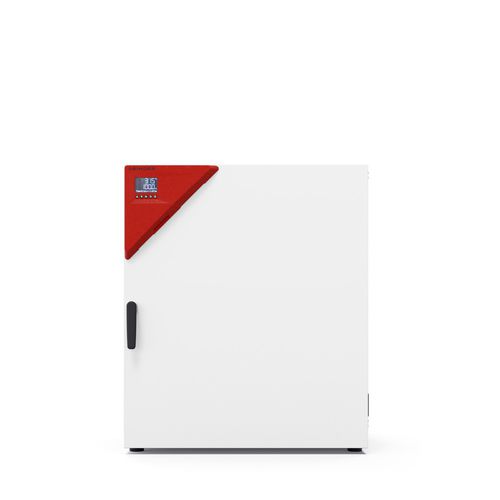

Heating oven FP 260

dryinglaboratoryforced convection

Product description
A BINDER material test chamber of the FP series delivers short drying times and fast heating with forced convection. Programmable controller functions and an adjustable fan allow precise control of temperature and airflow even during extended runs.

Benefits

• High temperature accuracy thanks to APT.line™ technology
• User-friendly controller with large display and interval/real-time programming
• Computer interface: Ethernet; internal data logger with USB readout in open format
• Selectable independent temperature safety devices: class 2 and class 3.1 (DIN 12880) with visual/acoustic alarm

Important characteristics

• Temperature range: +10 °C above ambient up to +300 °C
• Temperature uniformity at 150 °C: 1.7 ± K; fluctuation: 0.4 ± K
• Adjustable fan speed and electromechanical exhaust flap control
• Heating up time to 150 °C: 19 min; recovery time after 30 s door opening at 150 °C: 6 min
• Standard inclusions: 2 chrome-plated racks; units up to 115 L stackable
• Capacity: 259 L; load per rack: 40 kg; permitted total load: 270 kg

Data
Article Number: 9010-0365; 9010-0369
Designation: FP260-230V; FP260UL-240V
Option model: Standard

Performance Data Temperature
Temperature range: +10 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 1.7 ± K
Temperature fluctuation at 150 °C: 0.4 ± K
Heating up time to 150 °C: 19 min
Recovery time after door opened 30 s at 150 °C: 6 min

Air change data
Air change rate at 100 °C: 9 x/h

Electrical data
Rated Voltage: 230 V (article 9010-0365) ; 240 V (article 9010-0369)
Power frequency: 50/60 Hz (9010-0365) ; 60 Hz (9010-0369)
Nominal power: 2.5 kW
Unit fuse: 16.0 A
Phase: 1~ (9010-0365) ; 3~ (9010-0369)

Dimensions and weights
Interior volume: 259 L
Net weight (empty): 82 kg
Load per rack: 40 kg
Permitted total load: 270 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (not incl. fittings and connections)
Width net: 810 mm
Height net: 962 mm
Depth net: 786 mm

Internal Dimensions
Interior width: 650 mm
Interior height: 780 mm
Interior depth: 512 mm
Unit doors: 1

Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 275 Wh/h
Energy consumption at 150 °C: 465 Wh/h

Fixtures
Number of shelves (std./max.): 2/8

Options, accessories and services (selection)

• Interior lighting (27 W)
• Inert gas connection (inlet/outlet Ø 10 mm)
• Access ports with silicone plugs (various diameters and positions)
• HEPA H14 fresh-air filter
• Additional Pt100 sensors; reinforced shelves; transport trolleys
• Calibration certificates; qualification and service contracts

Technical specifications

• Model: FP 260
• Temperature range: +10 °C above ambient to +300 °C
• Interior volume: 259 L (W×H×D = 650×780×512 mm)
• Exterior dimensions: 810×962×786 mm (W×H×D)
• Temperature uniformity (150 °C): 1.7 ± K; fluctuation: 0.4 ± K
• Heating time to 150 °C: 19 min; recovery time (30 s door open): 6 min
• Air change at 100 °C: 9 x/h
• Power: 2.5 kW; nominal voltages: 230 V / 240 V; fuse: 16 A
• Net weight: 82 kg; shelves std/max: 2/8; max load per shelf: 40 kg
• Interface: Ethernet; internal data logger with USB readout
