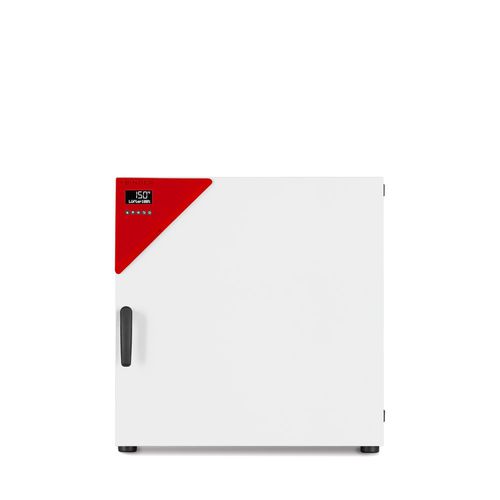

Heating oven FD 115

dryinglaboratoryforced convection

Product description
The BINDER FD 115 drying and heating chamber (Avantgarde.Line) is designed for applications requiring fast drying and sterilization with homogeneous temperature distribution and rapid recovery dynamics. The unit combines forced convection with precise temperature control for consistent process results.

Benefits

• High energy efficiency
• Excellent temporal and spatial temperature accuracy
• USB port for data recording
• Temperature range up to +300 °C

Important characteristics

• Temperature range: from +10 °C above ambient up to +300 °C
• Up to 30% lower energy consumption compared to conventional units
• High temperature accuracy provided by APT.line™ technology
• Forced convection (powerful fan)
• Controller with LCD display and USB interface
• Electromechanical exhaust air flap control
• 2 chrome-plated racks (standard), stackable design
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle

Data
Article Number: 9010-0305 | 9010-0306
Designation: FD115-230V | FD115UL-120V
Option model: Standard | Standard

Performance Data Temperature
Article Number: 9010-0305 | 9010-0306
Temperature range: +10 °C above ambient to 300 °C
Temperature uniformity at 150 °C: 1.7 ± K
Temperature fluctuation at 150 °C: 0.3 ± K
Heating up time to 150 °C: 18 min
Recovery time after door opened 30 s at 150 °C: 4 min

Air change data
Article Number: 9010-0305 | 9010-0306
Air change rate at 100 °C: 32 x/h

Electrical data
Article Number: 9010-0305 | 9010-0306
Rated voltage: 230 V (9010-0305) | 120 V (9010-0306)
Power frequency: 50/60 Hz (230 V) | 60 Hz (120 V)
Nominal power: 1.3 kW (230 V) | 1.4 kW (120 V)
Unit fuse: 6.3 A (230 V) | 12.5 A (120 V)
Phase: single-phase (1~)

Dimensions and weights
Article Number: 9010-0305 | 9010-0306
Interior volume: 116 L
Net weight (empty): 54 kg
Load per rack: 30 kg
Permitted total load: 150 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (net, not incl. fittings and connections)
Width net: 710 mm
Height net: 735 mm
Depth net: 605 mm

Internal Dimensions
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 385 mm
Unit doors: 1

Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 215 Wh/h
Energy consumption at 150 °C: 340 Wh/h

Fixtures
Number of shelves (std./max.): 2/5

Options & accessories (selection)

• Reinforced heating output — faster heat-up and improved recovery (230 V option)
• Interior lighting (27 W) (230/240 V option)
• Viewing window (triple-glazed insulating glass 370 × 370 mm) + interior lighting (15 W)
• Access port with silicone plug (various sizes/positions: left/right/top; 10 / 30 / 50 / 100 mm)
• HEPA air filter on fresh air supply (H14) — limited combinations with some options
• Inner chamber reinforced (max. total load 170 kg)
• Door gasket FKM (silicone-free)
• Gas-tight option model (limits apply with some accessories)
• Inert gas connection (inlet/outlet Ø 10 mm)
• Ethernet interface for Multi Management Software APT-COM™
• Calibration certificates and Pt100 sensors; calibration/measurement services
• Analog output 4-20 mA (temperature)
• Overheating alarm (acoustic, switchable)
• Door lock (lockable handle)
• Maintenance and service contracts; commissioning / IQ/OQ/PQ services

Technical specifications

• Model: FD 115
• Brand: BINDER
• Temperature range: +10 °C above ambient to +300 °C
• Temperature uniformity at 150 °C: 1.7 ± K
• Temperature fluctuation at 150 °C: 0.3 ± K
• Heating up time to 150 °C: 18 min
• Recovery time after 30 s door opening at 150 °C: 4 min
• Air change rate at 100 °C: 32 x/h
• Rated voltage options: 230 V (FD115-230V) / 120 V (FD115UL-120V)
• Nominal power: 1.3 kW (230 V) / 1.4 kW (120 V)
• Interior volume: 116 L
• Interior dimensions (W×H×D): 550 × 550 × 385 mm
• Housing net dimensions (W×H×D): 710 × 735 × 605 mm
• Net weight: 54 kg
• Load per rack: 30 kg; permitted total load: 150 kg
• Shelves (std./max.): 2 / 5
• Safety: Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Control: LCD controller; USB data recording
• Convection: Forced convection with powerful fan
