Heating oven FD 23

dryingfor general applicationslaboratory

Product description

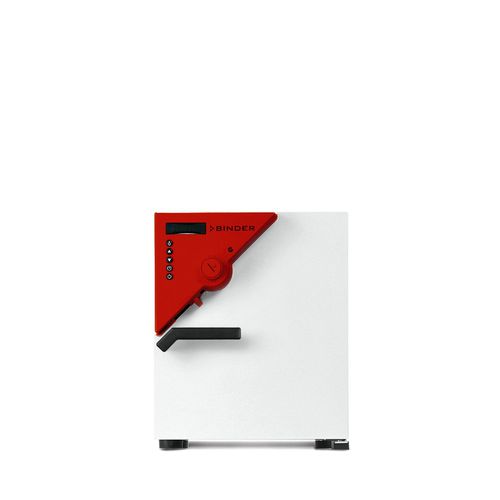

BINDER FD 23 drying and heating oven with forced convection designed for fast drying and sterilization. Homogeneous temperature distribution, fast dynamics and a powerful fan reduce process time and ensure repeatable test conditions.

Benefits

• Uniform temperature thanks to APT.line™ preheating chamber
• Identical test conditions throughout the chamber regardless of sample size or quantity
• Efficient thermal insulation to reduce operating costs

Important characteristics

• Temperature range: +5 °C above ambient to +300 °C
• APT.line™ preheating chamber technology
• Forced convection with adjustable exhaust air flap
• Controller with timer functions and independent class 2 temperature safety device (DIN 12880) with visual alarm
• 2 chrome-plated racks (standard); interior volume 20 L
• Voltage options: 230 V (standard) or 120 V

Performance & technical data
Article Number | 9010-0194 | 9010-0196
Designation | FD023-230V | FD023UL-120V
Temperature range | +5 °C above ambient to 300 °C | +5 °C above ambient to 300 °C
Temperature uniformity at 150 °C | 2.5 ± K | 2.5 ± K
Temperature fluctuation at 150 °C | 0.3 ± K | 0.3 ± K
Heating up time to 150 °C | 25 min | 25 min
Recovery time after door was opened for 30 s at 150 °C | 6 min | 6 min
Air change rate at 150 °C | 64 x/h | 64 x/h
Interior volume | 20 L | 20 L
Net weight (empty) | 27 kg | 27 kg
Housing dimensions (W×H×D) | 435 × 495 × 520 mm | 435 × 495 × 520 mm
Interior dimensions (W×H×D) | 222 × 330 × 300 mm | 222 × 330 × 300 mm

Options, accessories & services (selection)

• Viewing window and interior lighting (window 180 × 180 mm, 15 W interior light)
• Overtemperature alarm (switchable acoustic alarm), adjustable limit value
• Analog 4-20 mA output for temperature
• Class 3.1 independent temperature safety device with visual alarm (DIN 12880)
• Pt100 temperature sensor with external LEMO connector
• Door lock; access ports with silicone plugs (various diameters and positions); FKM door gasket
• Calibration certificates, IQ/OQ/PQ, maintenance contracts and warranty extensions
• Accessory racks and shelves (chrome-plated, stainless steel, perforated)

Technical specifications

• Model: FD 23
• Interior volume: 20 L
• Temperature range: +5 °C above ambient to +300 °C
• Interior dimensions (W×H×D): 222 × 330 × 300 mm
• Housing dimensions (W×H×D): 435 × 495 × 520 mm
• Net weight (empty): 27 kg
• Rated power: 0.8 kW
• Energy consumption at 150 °C: 300 Wh/h
• Air change rate at 150 °C: 64 x/h
• Shelves (std./max.): 2 / 4; load per rack: 12 kg; permitted load: 25 kg
