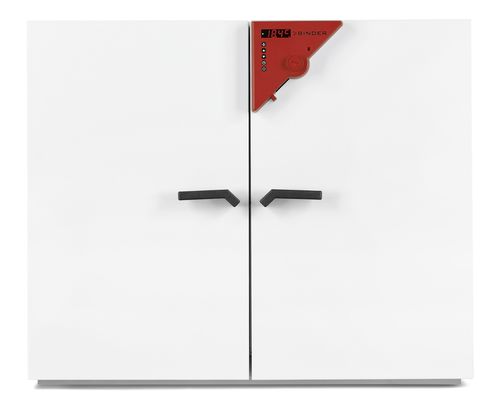

Heating oven FED 400

dryingfor general applicationslaboratory

Product description
BINDER FED series drying and heating chambers deliver high-capacity, flexible forced-convection performance for laboratory and industrial applications. The integrated APT.line™ preheating chamber, adjustable fan and enhanced timer functions enable precise control of temperature and convection conditions.

Benefits

• Uniform drying and heating thanks to APT.line™ preheating chamber technology
• Reproducible test conditions throughout the usable interior regardless of sample size or quantity
• Effective thermal insulation to reduce operating costs

Key features

• Temperature range: +5 °C above ambient temperature to +300 °C
• APT.line™ preheating chamber technology
• Adjustable fan speed and adjustable exhaust air flap
• Controller with expanded timer functions
• 2 chrome-plated racks (standard); up to 10 racks (max)
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Computer interface: RS 422

Technical specifications
General data
Article Number: 9010-0216 | 9010-0217
Designation: FED400-400V | FED400UL-208V
Option model: Standard

Performance data — Temperature
Article Number: 9010-0216 | 9010-0217
Temperature range: +5 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 3.8 ± K
Temperature fluctuation at 150 °C: 0.7 ± K
Heating up time to 150 °C: 29 min
Recovery time after door opened 30 s at 150 °C: 6 min

Air change data
Article Number: 9010-0216 | 9010-0217
Air change rate at 150 °C: 18 x/h

Electrical data
Article Number: 9010-0216 | 9010-0217
Rated voltage: 400 V (9010-0216) | 208 V (9010-0217)
Power frequency: 50/60 Hz (9010-0216) | 60 Hz (9010-0217)
Nominal power: 3.4 kW
Unit fuse: 16.0 A
Phase (nominal voltage): 3~/N/PE (400 V) | 3~ (208 V)

Dimensions and weights
Article Number: 9010-0216 | 9010-0217
Interior volume: 400 L
Net weight (empty): 145 kg
Load per rack: 35 kg — Permitted total load: 90 kg
Wall clearance back: 160 mm — Wall clearance sideways: 100 mm

Housing dimensions (not incl. fittings and connections)
Width net: 1,235 mm
Height net: 1,025 mm
Depth net: 765 mm

Internal dimensions
Interior width: 1,000 mm
Interior height: 800 mm
Interior depth: 510 mm
Unit doors: 2

Environment-specific data
Energy consumption at 150 °C: 1,200 Wh/h

Fixtures
Number of shelves (std./max.): 2/10

Options, accessories & services (selection)

• Class 3.1 independent temperature safety device (8012-1148)
• Overtemperature alarm function (8012-1301)
• Reinforced fan to increase air change rates (8012-0200)
• Viewing window (290 x 470 mm) and interior lighting 30 W (8012-1239)
• Inner chamber reinforced including 2 reinforced racks (8012-0339)
• FKM door gasket, silicone-free (8012-1310)
• HEPA air filter on fresh air supply (8012-0076)
• Analog output 4-20 mA for temperature values (8012-0433)
• Additional Pt100 sensor, access ports with silicone plugs, door lock and various rack/shelf options
• Software: APT-COM™ editions (BASIC, PROFESSIONAL, GLP) for logging and documentation
• Services: maintenance contracts (BRONZE, SILVER, GOLD), commissioning, IQ/OQ/PQ and warranty extension options

Technical data summary

• Model: FED 400
• Temperature range: +5 °C above ambient to +300 °C
• Interior volume: 400 L
• Interior dimensions (W×H×D): 1,000 × 800 × 510 mm
• Nominal power: 3.4 kW; Rated voltages: 400 V (standard) or 208 V
• Air change rate at 150 °C: 18 x/h
• Heating up to 150 °C: 29 min; Recovery after 30 s door opening at 150 °C: 6 min
• Safety: Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• Interface: RS 422
