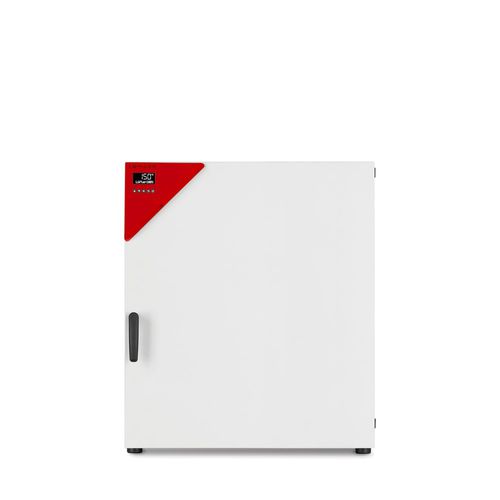

Heating oven ED 260

dryingfor general applicationslaboratory

Product description
BINDER ED series drying and heating chamber ED 260 performs routine drying and sterilization tasks up to +300 °C. Natural convection provides uniform heat distribution for fast, repeatable thermal processes suitable for laboratory and industrial applications.

Benefits

• Energy-efficient design with reduced consumption (up to 30% vs. conventional units)
• High temporal and spatial temperature accuracy (APT.line™)
• USB port for data recording
• Wide temperature range up to +300 °C

Important characteristics

• Temperature range: +5 °C above ambient temperature to +300 °C
• Natural convection for uniform drying
• APT.line™ technology for precise temperature control
• Controller with LCD display
• Electromechanical exhaust air flap control
• 2 chrome-plated racks (standard), expandable up to 8
• Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
• USB port for recording data

Data (general)
Article Number: 9010-0339 | 9010-0340
Designation: ED260-230V | ED260UL-240V
Option model: Standard | Standard

Performance Data Temperature
Article Number: 9010-0339 | 9010-0340
Temperature range: +5 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 1.8 ± K
Temperature fluctuation at 150 °C: 0.8 ± K
Heating up time to 150 °C: 50 min
Recovery time after door was opened for 30 s at 150 °C: 20 min

Air change data
Article Number: 9010-0339 | 9010-0340
Air change rate at 100 °C: 3 x/h

Electrical data
Article Number: 9010-0339 | 9010-0340
Rated Voltage: 230 V | 240 V
Power frequency: 50/60 Hz | 60 Hz
Nominal power: 2.25 kW | 2.45 kW
Unit fuse: 12.5 A | 16.0 A
Phase (Nominal voltage): 1~ | 1~

Dimensions and weights
Article Number: 9010-0339 | 9010-0340
Interior volume: 255 L
Net weight of the unit (empty): 85 kg
Load per rack: 40 kg
Permitted load: 270 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (not incl. fittings and connections)
Article Number: 9010-0339 | 9010-0340
Width net: 810 mm
Height net: 940 mm
Depth net: 760 mm

Internal Dimensions
Article Number: 9010-0339 | 9010-0340
Interior width: 610 mm
Interior height: 760 mm
Interior depth: 550 mm
Unit doors: 1

Environment-specific data
Article Number: 9010-0339 | 9010-0340
Energy consumption at 100 °C: 195 Wh/h
Energy consumption at 150 °C: 355 Wh/h

Fixtures
Article Number: 9010-0339 | 9010-0340
Number of shelves (std./max.): 2/8

Technical specifications

• Model name: ED 260
• Temperature range: +5 °C above ambient to +300 °C
• Natural convection for uniform drying
• APT.line™ technology for high temperature accuracy
• USB data recording port
• Controller with LCD display
• Independent adjustable temperature safety device (Class 2, DIN 12880) with visual alarm
• 2 chrome-plated standard racks, expandable up to 8 (max.), max load per rack 40 kg
• Interior volume: 255 L; net weight (empty): 85 kg
• Nominal power: 2.25 kW (230 V) / 2.45 kW (240 V)
• Energy consumption examples: 195 Wh/h at 100 °C; 355 Wh/h at 150 °C
• Air change rate at 100 °C: 3 x/h
• Wall clearance: back 160 mm, sidewise 100 mm
• Housing net dimensions: W 810 mm x H 940 mm x D 760 mm
