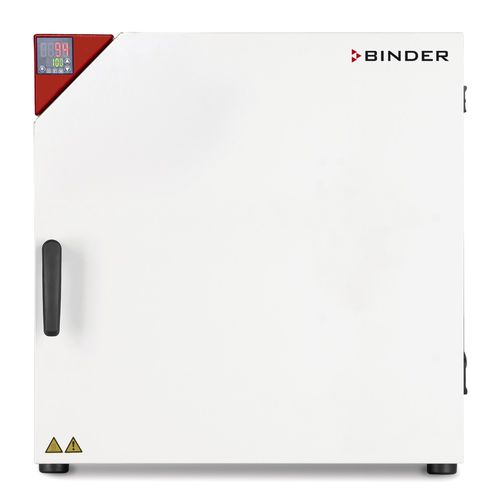

Heating oven FD-S 115

dryinglaboratoryforced convection

Product description
The Solid.Line FD-S 115 drying and heating chamber by BINDER is designed for controlled drying and heating tasks in laboratories and quality assurance environments. The unit combines forced convection with advanced preheating technology to ensure reproducible process conditions and uniform temperatures across the chamber.

Benefits

• Easy handling and ergonomic door operation
• Accurate temperature control with timer function
• Adaptable exhaust for process tuning

Important characteristics

• Temperature range: ambient +10 °C to +250 °C
• APT.line™ preheating chamber technology
• Forced convection for improved temperature distribution
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack included with shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Technical specifications (selected tables)
Data
Article Number: 9090-0024 | 9090-0025
Designation: FDS115-230V | FDS115UL-120V
Option model: Standard

Performance Data Temperature
Article Number: 9090-0024 | 9090-0025
Temperature range: +10 °C above ambient temperature to 250 °C
Temperature uniformity at 150°C: 2.0 ± K
Temperature fluctuation at 150°C: 0.4 ± K
Heating up time to 150°C: 20 min
Recovery time after door was opened for 30 s at 150°C: 8 min

Air change data
Article Number: 9090-0024 | 9090-0025
Air change rate at 100°C: 2 x/h

Electrical data
Article Number: 9090-0024 | 9090-0025
Rated Voltage: 230 V (9090-0024) | 120 V (9090-0025)
Power frequency: 50/60 Hz (9090-0024) | 60 Hz (9090-0025)
Nominal power: 1.3 kW (9090-0024) | 1.4 kW (9090-0025)
Unit fuse: 6.3 A
Phase (Nominal voltage): 1~

Dimensions and weights
Article Number: 9090-0024 | 9090-0025
Interior volume: 106 L
Net weight of the unit (empty): 48 kg
Load per rack: 20 kg
Permitted load: 75 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing dimensions (not incl. fittings and connections)
Article Number: 9090-0024 | 9090-0025
Width net: 764 mm
Height net: 735 mm
Depth net: 616 mm

Internal Dimensions
Article Number: 9090-0024 | 9090-0025
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 350 mm
Unit doors: 1

Environment-specific data
Article Number: 9090-0024 | 9090-0025
Sound-pressure level: 48 dB(A)
Energy consumption at 150°C: 340 Wh/h

Fixtures
Article Number: 9090-0024 | 9090-0025
Number of shelves (std./max.): 1/5

Characteristics / technical specifications

• Model series: FD-S 115
• Temperature control: precise regulator with timer function
• Preheating technology: APT.line™
• Air flow: forced convection
• Exhaust: adjustable exhaust air flap
• Safety: Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Included accessories: 1 chrome-plated rack with shelf supports
• Interior volume: 106 L
• Operating temperature range: +10 °C above ambient to +250 °C
• Temperature uniformity (at 150 °C): ±2.0 K
• Temperature fluctuation (at 150 °C): ±0.4 K
• Heating-up time to 150 °C: 20 min
• Recovery time after 30 s door opening (150 °C): 8 min
• Air change rate at 100 °C: 2 x/h
• Rated voltage options: 230 V or 120 V
• Nominal power: 1.3 kW (230 V) / 1.4 kW (120 V)
• Net weight: 48 kg
• Dimensions (W x H x D): 764 x 735 x 616 mm
• Interior dimensions (W x H x D): 550 x 550 x 350 mm
• Number of shelves (std./max.): 1 / 5
• Load per rack: 20 kg; permitted load: 75 kg
• Sound level: 48 dB(A)
• Energy consumption at 150 °C: 340 Wh/h
