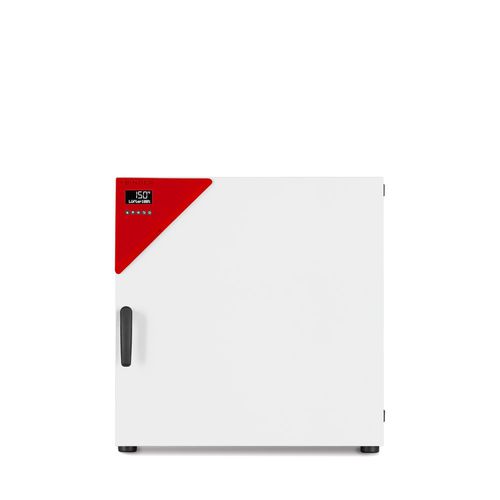

Heating oven FED 115

dryinglaboratoryfor general purposes

Product description
BINDER heating chambers of the FED Avantgarde.Line series provide almost unlimited capacity and are particularly adaptable. With advanced timing functions and a controllable fan, temperature and convection conditions are easily controlled.

Benefits

• Best energy efficiency on the market
• Excellent temporal and spatial temperature accuracy
• USB connection for recording data
• Temperature range up to 300 °C

Important characteristics

• Temperature range: +10 °C above ambient temperature to +300 °C
• Up to 30% lower energy consumption compared to conventional units on the market
• High temperature accuracy thanks to APT.line™ technology
• Adjustable fan speed
• Controller with LCD display and enhanced time functions
• Electromechanical control of the exhaust air flap
• 2 chrome-plated racks (standard); expandable to 5
• Stackable
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
• Ergonomic handle design
• Ethernet interface and USB port for data recording

Technical specifications - Data
Article Number: 9010-0293 | 9010-0294
Designation: FED115-230V | FED115UL-120V
Option model: Standard | Standard

Technical specifications - Performance Data Temperature
Article Number: 9010-0293 | 9010-0294
Temperature range: +10 °C above ambient temperature to 300 °C
Temperature uniformity at 150 °C: 1.2 ± K
Temperature fluctuation at 150 °C: 0.3 ± K
Heating up time to 150 °C: 18 min
Recovery time after door was opened for 30 s at 150 °C: 4 min

Technical specifications - Air change data
Article Number: 9010-0293 | 9010-0294
Air change rate at 100 °C: 32 x/h

Technical specifications - Electrical data
Article Number: 9010-0293 | 9010-0294
Rated Voltage: 230 V | 120 V
Power frequency: 50/60 Hz | 60 Hz
Nominal power: 1.3 kW | 1.4 kW
Unit fuse: 6.3 A | 12.5 A
Phase (Nominal voltage): 1~ | 1~

Technical specifications - Dimensions and weights
Article Number: 9010-0293 | 9010-0294
Interior volume: 116 L
Net weight of the unit (empty): 54 kg
Load per rack: 30 kg
Permitted load: 150 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Technical specifications - Housing dimensions (not incl. fittings and connections)
Article Number: 9010-0293 | 9010-0294
Width net: 710 mm
Height net: 705 mm
Depth net: 605 mm

Technical specifications - Internal Dimensions
Article Number: 9010-0293 | 9010-0294
Interior width: 550 mm
Interior height: 550 mm
Interior depth: 385 mm
Unit doors: 1

Technical specifications - Environment-specific data
Article Number: 9010-0293 | 9010-0294
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 215 Wh/h
Energy consumption at 150 °C: 340 Wh/h

Technical specifications - Fixtures
Article Number: 9010-0293 | 9010-0294
Number of shelves (std./max.): 2/5

Options, accessories and services — examples

• Interior lighting (27 W lamp, 230/240 V)
• Window (triple insulating glass) 370 x 370 mm with interior lighting 15 W (option)
• Access ports (silicone plug) in various sizes and positions
• HEPA filter class H14 (EN 1822-1:2009) at fresh-air intake (option-specific)
• Enhanced heating power (faster heating to 300 °C)
• Calibration certificates, maintenance contracts, qualification services, commissioning and training

Technical characteristics / summary

• Model designation: FED 115
• Temperature range: +10 °C above ambient to +300 °C
• Interior volume: 116 L (550 × 550 × 385 mm)
• Net weight (empty): 54 kg; permitted load: 150 kg; max load per rack: 30 kg
• Rated voltage / nominal power: 230 V / 1.3 kW (120 V / 1.4 kW option)
• Air change rate at 100 °C: 32 x/h; sound-pressure level: 43 dB(A)
• Interfaces: Ethernet, USB (data recording)
• Safety: integrated adjustable temperature safety device class 2 (DIN 12880) with visual alarm
