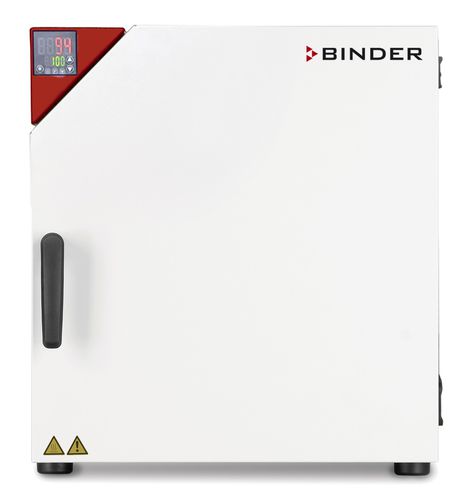

Heating oven FD-S 56

dryingfor scientific researchfor general applications

Product description
Solid.Line products feature BINDER quality and reliability. The FD-S 56 is designed for industrial and laboratory drying and heating applications and is suitable for use in research and quality assurance.

Benefits

• Easy handling
• Accurate temperature control
• Simple, ergonomic door opening

Important characteristics

• Temperature range: +10 °C above ambient to +250 °C
• APT.line™ preheating chamber technology
• Forced convection
• Adjustable exhaust air flap
• Controller with timer function
• 1 chrome-plated rack, including shelf supports
• Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm

Data (article / designation / option)
Article Number | 9090-0018 | 9090-0019
Designation | FDS056-230V | FDS056UL-120V
Option model | Standard | Standard

Performance Data — Temperature
Article Number | 9090-0018 | 9090-0019
Temperature range | +10 °C above ambient temperature to 250 °C | +10 °C above ambient temperature to 250 °C
Temperature uniformity at 150 °C | 2.6 ± K | 2.6 ± K
Temperature fluctuation at 150 °C | 0.4 ± K | 0.4 ± K
Heating up time to 150 °C | 15 min | 15 min
Recovery time after door was opened for 30 s at 150 °C | 5 min | 5 min

Air change data
Article Number | 9090-0018 | 9090-0019
Air change rate at 100 °C | 4 x/h | 4 x/h

Electrical data
Article Number | 9090-0018 | 9090-0019
Rated Voltage | 230 V | 120 V
Power frequency | 50/60 Hz | 60 Hz
Nominal power | 1.1 kW | 1.2 kW
Unit fuse | 6.3 A | 6.3 A
Phase (Nominal voltage) | 1~ | 1~

Dimensions and weights
Article Number | 9090-0018 | 9090-0019
Interior volume | 55 L | 55 L
Net weight of the unit (empty) | 35 kg | 35 kg
Load per rack | 15 kg | 15 kg
Permitted load | 45 kg | 45 kg
Wall clearance back | 160 mm | 160 mm
Wall clearance sidewise | 100 mm | 100 mm

Housing dimensions (net)
Article Number | 9090-0018 | 9090-0019
Width net | 614 mm | 614 mm
Height net | 625 mm | 625 mm
Depth net | 577 mm | 577 mm

Internal Dimensions
Article Number | 9090-0018 | 9090-0019
Interior width | 400 mm | 400 mm
Interior height | 440 mm | 440 mm
Interior depth | 310 mm | 310 mm
Unit doors | 1 | 1

Environment-specific data
Article Number | 9090-0018 | 9090-0019
Sound-pressure level | 43 dB(A) | 43 dB(A)
Energy consumption at 150 °C | 290 Wh/h | 290 Wh/h

Fixtures
Article Number | 9090-0018 | 9090-0019
Number of shelves (std./max.) | 1/3 | 1/3

Accessories & services (selection)

• Grid shelf, chrome plated, incl. shelf supports (accessory number 8012-1807)
• pH-neutral detergent, concentrated (1 kg) (8012-2250)
• Rubber pads (anti-slip feet) (8012-2030)
• Calibration and measurement services (various calibration certificates and multi-point temperature measurements available)
• Maintenance and warranty extension services (BRONZE / SILVER / GOLD contracts, commissioning, unit instructions)

Technical specifications

• Model name: FD-S 56
• Temperature range: +10 °C above ambient to +250 °C
• Volume (interior): 55 L
• Temperature uniformity at 150 °C: 2.6 ± K
• Nominal voltage: 230 V or 120 V
• Nominal power: 1.1 kW (230 V) / 1.2 kW (120 V)
• Net weight (empty): 35 kg
• Net housing dimensions (W × H × D): 614 × 625 × 577 mm
• Interior dimensions (W × H × D): 400 × 440 × 310 mm
• Shelves (std./max.): 1 / 3
• Max load per rack: 15 kg — Total permitted load: 45 kg
• Safety: Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
