Heating oven FED 260

dryingfor general applicationslaboratory

Product description

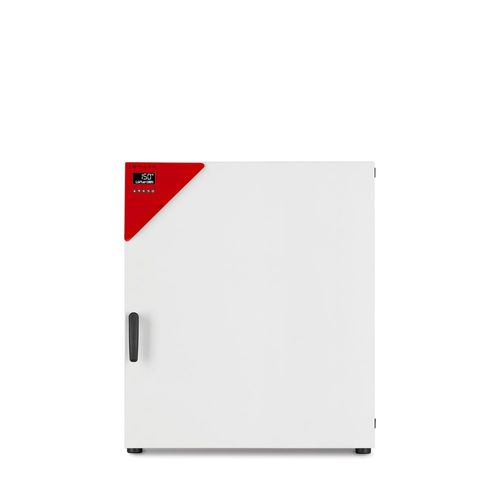

The BINDER FED 260 (Avantgarde.Line) is a drying and heating chamber designed for industrial and laboratory use. It combines forced-convection airflow with an adjustable fan and advanced timing functions to control temperature distribution and process timing precisely.

Benefits

• Leading energy efficiency for continuous operation
• High temporal and spatial temperature accuracy (APT.line™)
• USB port and Ethernet interface for data logging and connectivity
• Operating range up to 300 °C

Key characteristics

• Temperature range: ambient +10 °C to 300 °C
• Up to 30% lower energy consumption versus conventional units
• APT.line™ technology for improved temperature accuracy
• Adjustable fan speed for controlled convection
• LCD controller with enhanced timer functions
• Electromechanical exhaust air flap
• 2 chrome-plated racks (standard)
• Class 2 independent adjustable safety temperature limiter (DIN 12880) with visual alarm
• Ergonomic handle
• USB data logging port and Ethernet interface

Performance / Temperature (selected)
Temperature uniformity at 150 °C: 1.6 ± K
Temperature fluctuation at 150 °C: 0.4 ± K
Heating up time to 150 °C: 19 min
Recovery time after door opened 30 s at 150 °C: 5 min

Air change data
Air change rate at 100 °C: 9 x/h

Electrical data (selected)
Rated voltage: 230 V (standard) / 240 V (option)
Power frequency: 50/60 Hz (230 V) ; 60 Hz (240 V)
Nominal power: 2.3 kW (230 V) / 2.5 kW (240 V)
Unit fuse: 12.5 A (230 V) / 16.0 A (240 V)
Phase (nominal voltage): 1~

Dimensions & weights (selected)
Interior volume: 259 L
Net weight (empty): 85 kg
Load per rack: 40 kg
Permitted total load: 270 kg
Wall clearance back: 160 mm
Wall clearance sidewise: 100 mm

Housing / Internal dimensions (selected)
Width (net): 810 mm
Height (net): 940 mm
Depth (net): 760 mm
Interior width: 650 mm
Interior height: 780 mm
Interior depth: 515 mm
Unit doors: 1

Environment-specific data
Sound-pressure level: 43 dB(A)
Energy consumption at 100 °C: 245 Wh/h
Energy consumption at 150 °C: 410 Wh/h

Fixtures
Number of shelves (std./max.): 2/8

Model / Technical specifications

• Model / Denomination: FED 260 (designations: FED260-230V, FED260UL-240V)
• Article numbers (examples): 9010-0299 (230 V), 9010-0300 (240 V)
• Temperature range: ambient +10 °C to 300 °C
• Interior volume: 259 L; Internal dimensions (W×H×D): 650 × 780 × 515 mm
• Exterior net dimensions (W×H×D): 810 × 940 × 760 mm
• Net weight: 85 kg; Permitted total load: 270 kg; Load per rack: 40 kg
• Interfaces & features: USB data logging, Ethernet, adjustable fan speed, LCD controller, electromechanical exhaust flap, APT.line™ technology
