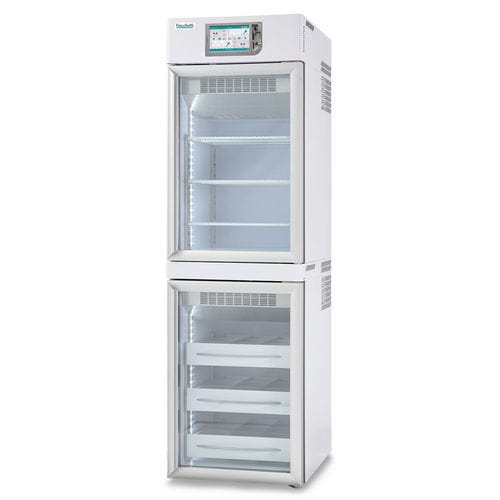

Pharmacy refrigerator MEDIKA 2T 280 TOUCH

for vaccinesfor laboratorycabinet

Short description
Professional double-temperature pharmacy refrigerator with two independent cooling units, nominal capacity 280 L (140+140 L), dedicated to storage of drugs and vaccines. Two tempered glass doors, positive temperature settings in both compartments and integrated data recording via 7" full touch screen controller.

Key product summary

• Temperature range: +2/+15 °C (both compartments)
• Nominal capacity: 140+140 L — Gross indicated on product page: 306 L
• External dimensions (WxDxH): 52 x 66.5 x 177.5 cm
• Controller: 7" full touch screen microprocessor

Design and construction
The MEDIKA 2T® series features a double compartment and double cooling unit for separate positive-temperature storage of medicines and vaccines. Monocoque structure with plastified atoxic white steel interior/exterior with antibacterial film or inner 18/10 AISI 304 stainless steel. Tempered triple-layer low-emissivity anti-fog glass doors with anodized aluminium profiles, full-length ergonomic handles and magnetic gasket. Automatic return-spring lock and 90° door stop.

Interior and refrigeration
Inner dimensions (each compartment): 44 x 51.6 x 56 cm. Nominal capacity: 140+140 L; net capacity: 128+128 L. Insulation: PUF injected at 43 kg/m3, thickness 40 mm, water-foam based, CFC-free. Refrigeration: professional ventilated system with automatic adaptive defrost and condensate vaporization. Full-height adjustable LED lighting. Mobility: 4 unidirectional rollers and 2 front feet. Night & Day energy-saving function.

Controller and monitoring
7" full touch microprocessor controller with 0.1 °C resolution and ±0.3 °C accuracy. Functions: temperature and alarm recording, multi-trace real-time graph, editable set-points and alarm limits, energy consumption display. Slots: SD card, USB, SIM. Connectivity: integrated web server for LAN (RJ45) and MODBUS TCP/IP. Safety: anti-freeze and anti-overheating protection, dry contact for remote alarm, acoustic and visual silenciable alarms with automatic logging. Optional: electronic lock, power-failure alarm, DMLP TOUCH module, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring.

Documents and resources
Technical drawings, data sheets and brochure available on the product page.

Technical specifications

• Model series: MEDIKA 2T®
• Model name: MEDIKA 2T 280 TOUCH — Code: MET0282
• Temperature range: +2/+15 °C
• Gross indicated capacity: 306 L — Nominal: 140+140 L; Net: 128+128 L
• Inner dimensions (each): 44 x 51.6 x 56 cm
• External dimensions (WxDxH): 52 x 66.5 x 177.5 cm
• Insulation: PUF injected 43 kg/m3; 40 mm
• Structure: Monocoque; plastified atoxic white steel or inner 18/10 AISI 304 stainless steel
• Doors: Tempered anti-fog low-emissivity triple glass; anodized aluminium profiles; magnetic gasket; automatic lock; 90° stop
• Rollers/feet: 4 unidirectional rollers + 2 front feet
• Lighting: Full LED adjustable
• Refrigeration: Professional ventilated; automatic adaptive defrost
• Controller: 7" full touch — 0.1 °C resolution; ±0.3 °C accuracy; SD/USB/SIM; LAN & MODBUS TCP/IP
• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Power/currents: 0.14+0.14 kW / 0.9+0.9 A
• Inrush current: 2.5+2.5 A
• Noise level: <45 dBA
• Heat rejection (EN 12900): 41 W
• Shelves max: 3+3 (40 x 47 cm)
• Drawers max: 5+5
• Application: Pharmacy storage of drugs and vaccines
