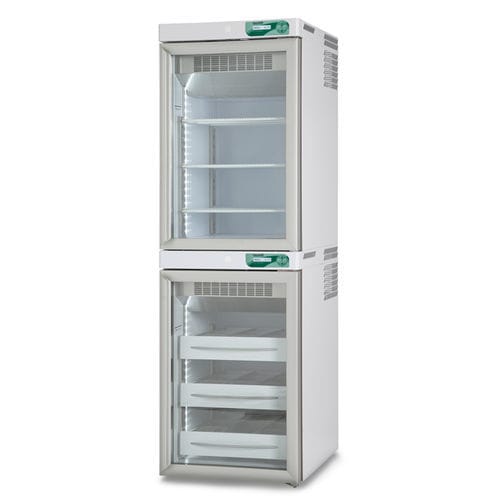

Pharmacy refrigerator MEDIKA 2T 280 ECT-F

for vaccinesmedicalupright

Overview
Professional medical refrigerator MEDIKA 2T with dual temperature and twin compressors, nominal capacity 140+140 L (independent compartments) designed for storage of medicines and vaccines. Model with 2 tempered glass doors and positive-temperature compartments, suitable for pharmacy and clinical use.

Main features

• Two independent compartments and twin compressors for storage at different set temperatures
• Anti-condensation tempered glass doors, low-emissivity triple glazing with anodized aluminum profiles
• Full-length ergonomic handle; magnetic gasket on four sides
• Automatic closing with return spring and 90° door stay
• Full-height internal LED lighting in each compartment
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic with condensate water evaporation

ECT-F controller
Temperature display and setting with 0.1°C resolution and ±0.3°C accuracy. 16-character backlit alphanumeric LCD. 4-button membrane keypad, display configurable in four reading modes and customizable in 5 languages. Password protection for power on/off and set-point changes. Three main temperature alarm types; event logging up to 12 events.

Construction and refrigeration

• Internal dimensions (per compartment): 44 x 51.6 x 56 cm (x2)
• Nominal capacity: 140+140 L
• Net capacity: 128+128 L
• Declared total capacity: 306 L (10.81 cu ft)
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: 40 mm
• Structure: one-piece plastified steel (white) interior/exterior with certified antibacterial treatment; interior also available in AISI 304 stainless steel; rounded corners and sump base
• Mobility: 4 unidirectional rollers included and two front adjustable feet

Key technical data

• Temperature range: +2/+15°C | +2/+15°C
• Refrigerant type: R290
• Consumption: 1 kWh/24h
• Power input: 0.14 kW + 0.14 kW
• Current: 0.9 A + 0.9 A
• Starting current: 2.5 A + 2.5 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 41 W
• Maximum shelves: 3+3 (shelf size 40 x 47 cm)
• Maximum drawers: 5+5
• Drawer size with dividers (LxDxH) (x n.slots): 10 x 45 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 33 x 45 x 7.5 cm

External dimensions
52 x 66.5 x 166.5 cm (W x D x H)

Accessories available on request

• Lock with key
• Shelf for models 100-140-280-300
• Sliding aluminum drawer with dividers for models 100-140-280
• Sliding aluminum drawer without dividers for models 100-140-280
• Plexiglass front riser for drawer
• Wheel kit (n.2 with brake) for models 100-140-280
• Cable gland hole diameter 35 mm with plug
• Hole diameter 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packaging

Characteristics / technical specifications

• Model: MEDIKA 2T 280 ECT-F
• Brand: Fiocchetti
• Product code shown on page: MET0281
• Temperature: +2/+15°C for both compartments
• Nominal capacity: 140+140 L (net 128+128 L)
• Declared total capacity: 306 L
• Refrigerant gas: R290
• Consumption: 1 kWh/24h
• Power input: 0.14 + 0.14 kW
• Current: 0.9 + 0.9 A
• Starting current: 2.5 + 2.5 A
• Noise level: <45 dBA
• External dimensions (W x D x H): 52 x 66.5 x 166.5 cm
• Internal dimensions per compartment (W x D x H): 44 x 51.6 x 56 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 40 mm
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic
• Display/control: ECT-F electronic controller, 0.1°C resolution, ±0.3°C accuracy, alphanumeric LCD, 4-button membrane keypad, alarms and event logging
• Doors: 2 anti-condensation tempered glass doors, triple glazing
• Lighting: full-height internal LED
