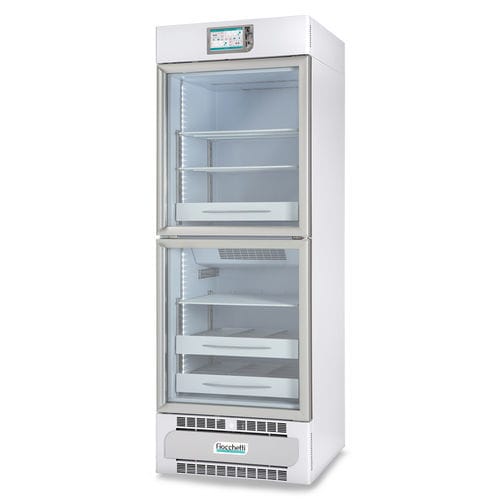

Pharmacy refrigerator MEDIKA 2T 500 TOUCH

for vaccineslaboratorycabinet

Product overview
Pharmacy refrigerator designed for storage of drugs and vaccines with two independent refrigeration compartments. Total nominal capacity 500 L (250+250 L). Two tempered glass doors allow visual inspection while maintaining positive temperature control in both chambers.

Key features

• Double positive-temperature refrigerator with two independent cooling units and two glass doors.
• 7" full touch-screen controller managing both compartments and providing data logging.
• Tempered, anti-fog, low-emissivity glass doors mounted on anodized aluminium frames.
• Full-length ergonomic handle and magnetic gasket sealing on all sides.
• Automatic return-lock with 90° door stop; opening side reversible.
• Night & Day function to reduce power consumption.

Structure and refrigeration

• Inner dimensions (each compartment): 60 x 58.8 x 70 cm / 60 x 58.8 x 74 cm.
• Nominal capacity: 250 + 250 L; net capacity approx. 249 + 230 L.
• Insulation: injected PUF at 43 kg/m3, CFC-free, water-based injection; thickness 75 mm (back) / 60 mm (sides).
• Monocoque structure in white plasticized atoxic steel with antibacterial film; rounded inner corners and tank-shaped bottom.
• Mobility/stability: 4 unidirectional rollers and 2 front feet included.
• Interior lighting: full-height LED with adjustable brightness.
• Refrigeration: professional ventilated system with automatic adaptive defrost and condensate evaporation.

Electronic controller (TOUCH)

• 7" full touch-screen microprocessor controller, resolution 0.1°C, accuracy ±0.3°C.
• Standard: temperature and alarm recording, multi-trace real-time graph, simultaneous display of current temperature and editable setpoint, editable alarm limits.
• Slots/ports: SD card slot for data history, USB port for downloads/updates, SIM slot for optional GSM module.
• Communications: integrated web server for LAN (RJ45) and MODBUS TCP/IP support.
• Safety: anti-freeze and anti-overheat devices; dry contact for remote alarm; acoustic and visual alarms (silenceable) with automatic logging.
• Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local and cloud monitoring systems.

Documents and resources (available)

• Product-specific sketch drawing.
• Technical sheet MEDIKA 2T 500 ECT-F TOUCH (English technical sheet available).
• MEDIKA 2T series brochure.

Technical specifications

• Temperature range: +2/+15°C | +2/+15°C (both compartments).
• Displayed capacity: 510 L (18.01 cu ft); nominal 250+250 L.
• Net capacity: 249 + 230 L.
• External dimensions (WxDxH): 72 x 76 x 208 cm.
• Refrigerant: R290.
• Energy consumption: 1.4 kWh/24h.
• Power absorption / current: 0.17 + 0.17 kW / 1 + 1 A; inrush current 3 + 3 A.
• Noise level: <50 dBA.
• Heat rejection (EN 12900): 58 W.
• Shelves max: 3 + 3 (wire shelf size 56 x 55 cm); drawers max: 5 + 5.
• Controller: TOUCH 7" (0.1°C resolution, ±0.3°C accuracy) with SD/USB/SIM and LAN/MODBUS connectivity.
