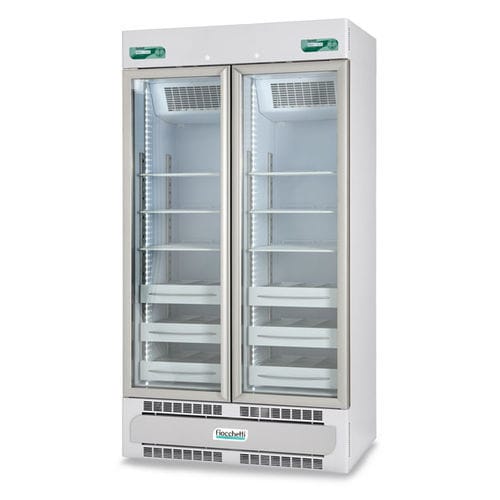

Pharmacy refrigerator MEDIKA 2T 600 ECT-F

for vaccinescabinetupright

Brief description
Double-compartment pharmaceutical and vaccine refrigerator MEDIKA 2T 600 with dual compressors, total nominal capacity 600 L (300+300), two side-by-side tempered glass doors and positive temperature range in both compartments; suitable for pharmacy use.

Main features

• Temperature range: +2/+15°C | +2/+15°C
• Capacity / Volume: 604 L (300+300 nominal; net capacity 265+265 L)
• External dimensions (W×D×H): 104 × 66 × 196 cm
• Controller type: ECT-F
• Code: MET0601

General description
The MEDIKA 2T series features two compartments with independent compressors for storage of medicines and vaccines at different positive temperatures. Tempered glass doors are anti-fog and low-emissivity for improved thermal performance, fitted with anodized aluminum profiles. Full-length ergonomic handles, magnetic gasket on four sides, automatic closing with return spring and 90° door stop. Interior fully customizable for shelving and stock management.

Structure and refrigeration

• Internal dimensions: 44 × 48.5 × 140 cm (×2)
• Nominal capacity: 300+300 L (10.59+10.59 cu ft)
• Net capacity: 265+265 L (9.35+9.35 cu ft)
• Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, eco-friendly water-blown injection
• Insulation thickness: 70 mm rear / 40 mm sides
• Structure: single-shell white coated steel interior/exterior with certified antibacterial treatment; rounded corners and sump base
• Mobility: 4 unidirectional rollers included and two front feet for stability
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensate evaporation

ECT-F electronic controller

• Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C
• Display: 16-character backlit alphanumeric LCD, configurable in 5 languages; four display modes
• Keyboard: 4 membrane keys for user interaction; configurable password for power on/off and set-point changes
• Alarms: three temperature alarm types; records up to 12 events

Technical data

• Refrigerant type: R290
• Consumption: 1.8 kWh/24h
• Absorbed power / Current: kW 0.19 + 0.19 / A 1.3 + 1.3
• Starting current: A 3+3
• Noise level: <50 dBA
• Heat emission EN 12900: W 75
• Max grids: 6+6 (grid size: 40 × 47 cm)
• Max drawers: 12+12
• Internal drawer size with dividers (W×D×H): 10 × 45 × 7.5 cm (3 compartments)
• Internal drawer size without dividers (W×D×H): 33 × 45 × 7.5 cm

Characteristics / Technical specifications

• Model: MEDIKA 2T 600 ECT-F
• Application: storage of medicines and vaccines, designed for pharmacy use
• Doors: 2 anti-fog tempered glass doors with low emissivity
• Motors: dual compressors (one per compartment) for independent positive temperatures
• Control: ECT-F electronic controller with display and alarms
• Insulation: injected polyurethane 43 kg/m3, CFC-free
• Lighting: internal full LED
• Internal customizations and accessories available on request: lock with key, shelves for model 600 2T, sliding drawers with/without dividers, plexiglass front riser, internal power outlet, cable pass-through holes, PT100 probes/humidity probe, 220V/115V power supplies, voltage stabilizer, crate packing
