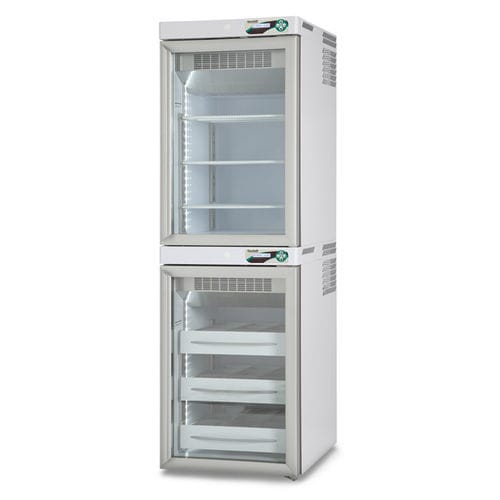

Vaccine refrigerator MEDIKA 2T 280 ECT-F PLUS

for pharmaciesmedicalupright

Overview
Professional dual-temperature positive pharmaceutical refrigerator with twin compressors, designed for storage of medicines and vaccines in pharmacy environments. Fitted with two anti‑condensation, low‑emissivity triple-glazed doors, customizable interiors and two separate compartments for independent temperature management.

Main features

• Temperature range: +2/+15°C | +2/+15°C
• Nominal capacity: 140+140 L (series indication)
• Net capacity: 128+128 L (per compartment)
• Total capacity indicated: 306 L (10.81 cu ft)
• External dimensions (W×D×H): 52 × 66.5 × 166.5 cm
• Controller type: ECT-F PLUS

Construction and refrigeration

• Internal dimensions: 44 × 51.6 × 56 cm (x2)
• Nominal capacity per compartment: 140 L (4.94 cu ft)
• Net capacity per compartment: 128 L (4.53 cu ft)
• Insulation: high-density injected polyurethane 43 kg/m3, CFC-free, eco-friendly water injection
• Insulation thickness: 40 mm
• Structure: single-shell white plastified steel interior/exterior with certified antibacterial treatment; optional stainless steel 18/10 AISI 304 interior; rounded corners and sump base
• Mobility: 4 unidirectional rollers included and two front adjustable feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic with condensate evaporation

Doors and closures

• Two triple‑layer tempered glass doors compliant with IEC 61010-1, anti‑condensation and low‑emissivity
• Anodized aluminium profiles
• Full-length ergonomic handles
• Magnetic gasket seal on all four sides
• Self-closing with return spring and 90° door stay

ECT-F PLUS controller

• Temperature display and setting with 0.1°C resolution
• Accuracy: +/- 0.3°C
• 16-character backlit alphanumeric LCD display, configurable in 5 languages
• Keypad: 4 membrane keys
• Backup battery for power-failure alarm up to 48 hours
• Min/max temperature memory and logging of 16 events
• Clean contact on electronics board for remote alarm integration
• Display configurable in different reading modes; password protection for power on/off and set-point changes
• Temperature alarms including high‑temperature alarm due to power failure; alarms displayable even without mains power

Technical data

• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Absorbed power/Current: 0.14 + 0.14 kW / 0.9 + 0.9 A
• Inrush current: 2.5 + 2.5 A
• Noise level: <45 dBA
• Heat emission (EN 12900): 41 W
• Max shelves: 3+3
• Shelf dimensions: 40 × 47 cm
• Max drawers: 5+5
• Drawer with dividers (L×D×H) (x n.spaces): 10 × 45 × 7.5 cm (3)
• Internal drawer size without dividers (L×D×H): 33 × 45 × 7.5 cm

Accessories available on request

• Key lock
• ECT-F PLUS external clean contacts
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for models 100-140-280-300
• Aluminium sliding drawer with dividers for models 100-140-280
• Aluminium sliding drawer without dividers for models 100-140-280
• Plexiglas front riser for drawer
• Wheel kit (2 wheels with brake) for models 100-140-280
• Cable gland Ø 35 mm with plug
• Ø 15 mm hole
• Humidity probe
• PT100 probe with potential-free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Crate packing

Technical specifications

• Brand: Fiocchetti
• Commercial name: MEDIKA 2T 280 ECT-F PLUS
• Product code (sheet): Cod. MET0283
• Type: dual-temperature positive refrigerator, twin-compressor
• Controller: ECT-F PLUS (16‑char LCD, 0.1°C)
• Temperature range: +2/+15°C (both compartments)
• Nominal capacity: 140+140 L; net capacity: 128+128 L; indicated total: 306 L (10.81 cu ft)
• External dimensions (W×D×H): 52 × 66.5 × 166.5 cm
• Internal dimensions (per compartment): 44 × 51.6 × 56 cm
• Insulation: injected polyurethane 43 kg/m3, thickness 40 mm
• Refrigerant: R290
• Energy consumption: 1 kWh/24h
• Absorbed power: 0.14 + 0.14 kW; current 0.9 + 0.9 A
• Noise: <45 dBA
• Materials: white plastified steel interior/exterior (optional stainless steel 18/10 AISI 304 interior)
• Lighting: full-height LED
• Defrost: adaptive automatic with condensate evaporation
• Number of doors: 2 triple‑layer tempered glass, anti‑condensation
• Closure: magnetic gasket, self-closing with spring and 90° door stay
• Accessories and options: see accessories section
• Technical documentation available: dimensional drawing, technical sheet and MEDIKA 2T series brochure (PDF)
