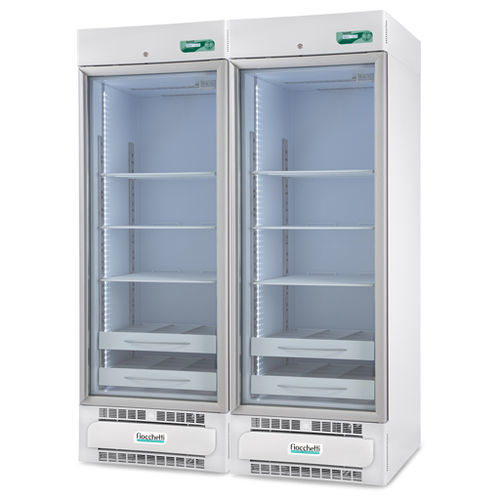

Pharmacy refrigerator MEDIKA 2T 1000 ECT-F

for vaccinesfor hospitalsupright

Description
Model composed of two adjacent biological refrigerators of 500 L each, with two opposite glass doors, two displays and positive temperature in both compartments; suitable for storage of medicines and vaccines in pharmacies and hospitals.

General features

• Series: MEDIKA 2T®
• Double chamber and double compressor for independent management of two positive temperatures
• Tempered glass doors compliant with IEC 61010-1 safety standards, anti-condensation and low-emissivity
• Anodized aluminum profiles
• Full-length ergonomic handle
• Magnetic gasket seal on all four sides
• Automatic closing with return spring and 90° door stop
• Fully customizable interior to organize and control medicine stocks

Main parameters

• Temperature range: +2/+15°C | +2/+15°C
• Total gross capacity: 1054 L (37.22 cu ft)
• Nominal capacity: 500+500 L (17.65+17.65 cu ft)
• Net capacity: 527+527 L (18.61+18.61 cu ft)
• External dimensions (W×D×H): 144 × 76 × 208 cm
• Internal dimensions (per compartment): 60 × 58 × 150 cm
• Electronics type: ECT-F

Structure and refrigeration

• Insulation type: injected high-density polyurethane foam between walls (43 kg/m3), CFC-free with eco-friendly water injection
• Insulation thickness: 75 mm rear / 60 mm sides
• Structure: one-piece body in white plastic-coated non-toxic steel interior/exterior with certified antibacterial treatment or interior in AISI 304 18/10 stainless steel; rounded corners and tray base
• Mobility: 4 unidirectional rollers included and two adjustable front feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensation water evaporation

Electronic controller ECT-F

• Temperature display and setting with 0.1°C resolution
• Accuracy: ±0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• Keypad with 4 membrane keys for user dialogue and intuitive operations
• Display configurable in four reading modes
• Customizable password for protection of power on/off and set-point changes
• Alarms: mainly three types of temperature alarms and record of 12 events

Technical data of the refrigerator
Refrigerant gas type: R290
Consumption: 1+1 kWh/24h
Power input / Current: 0.17 kW + 0.17 kW / 1 + 1 A
Starting current: 3 + 3 A
Noise level: <45 dBA
Heat emitted EN 12900: 40 + 40 W
Max number of shelves: 7+7
Shelf dimensions: 56 × 55 cm
Max number of drawers: 14+14
Internal drawer with dividers (L×D×H) (per spaces): 15 × 50 × 7.5 cm (3)

Accessories available on request

• Key lock
• Shelf for 500 model
• Sliding aluminum drawer with dividers for 500 model
• Sliding aluminum drawer without dividers for 500 model
• Drawer with lock for narcotics
• Plexiglass front riser for drawer
• Wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for 500 model
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / Technical specifications

• Commercial name: MEDIKA 2T®
• Indicative product code on page: Cod. MED0501 (x2)
• Operating temperature: positive (+2/+15°C) in both compartments
• Total gross capacity: 1054 L (37.22 cu ft); nominal 500+500 L; net 527+527 L
• External dimensions (W×D×H): 144 × 76 × 208 cm
• Internal dimensions (per compartment): 60 × 58 × 150 cm
• Insulation: injected polyurethane foam 43 kg/m3; thickness mm 75 (rear) / mm 60 (sides)
• Materials: white plastic-coated non-toxic steel interior/exterior (antibacterial treatment) or interior in AISI 304 18/10 stainless steel
• Refrigerant: R290
• Electric consumption: 1+1 kWh/24h
• Power input: 0.17 kW + 0.17 kW (Current: 1 + 1 A)
• Defrost: automatic adaptive with condensate evaporation
• Noise: <45 dBA
• Internal lighting: Full LED
• Controller: ECT-F (alphanumeric display, 5 languages, 0.1°C resolution, accuracy ±0.3°C)
• Number of doors: 2 opposite glass doors per compartment
• Accessories: see list of accessories available on request
