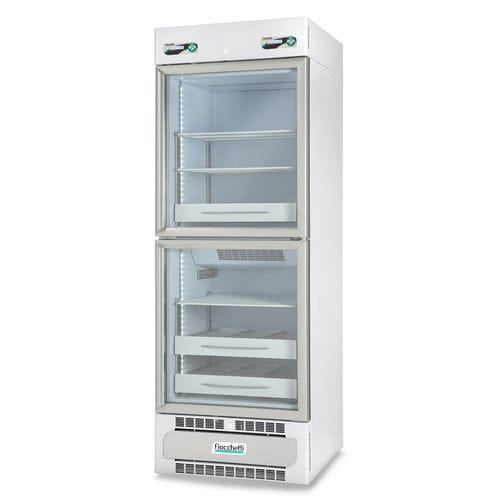

Pharmacy refrigerator MEDIKA 2T 500 ECT-F PLUS

for vaccinesfor drugsupright

Overview
Medium-size pharmacy refrigerator, 500 litres (250+250) with double compartment and dual compressors for storage of medicines and vaccines at different positive temperatures. Equipped with 2 tempered glass doors, customizable interiors and the ECT-F PLUS electronic controller.

Main data

• Product code: MET0503
• Temperature range: +2/+15°C
• Nominal capacity: 250+250 L (510 L indicated in the datasheet)
• External dimensions (WxDxH): 72 x 76 x 208 cm
• Controller type: ECT-F PLUS

Structure and refrigeration
The two internal compartments with dual compressors allow storage of medicines and vaccines at different temperatures. Tempered glass doors compliant with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance with anodized aluminium profiles. Full-length ergonomic handles, magnetic gasket on four sides, automatic closing with return spring and 90° door stop, reversible door swing.

Structure features

• Internal dimensions (per compartment): 60 x 58.8 x 70 cm / 60 x 58.8 x 74 cm
• Nominal capacity: 250+250 L (8.82+8.82 cu ft)
• Net capacity: 249+230 L (8.80 + 8.13 cu ft)
• Insulation: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: 75 mm back / 60 mm sides
• Structure: one-piece shell in white coated steel internal/external with certified antibacterial treatment; rounded corners and tray-like bottom
• Mobility: 4 unidirectional rollers included and two front leveling feet
• Internal lighting: full-height LED
• Refrigeration type: professional fan-forced
• Defrost type: automatic, adaptive with condensate water evaporation

ECT-F PLUS electronic controller

• Temperature display and setpoint with 0.1°C resolution, accuracy ±0.3°C
• 16-character alphanumeric backlit LCD, customizable in 5 languages and configurable in different display modes
• Keyboard: 4 membrane keys; password protection for power on/off and set-point changes
• Backup battery for power-failure alarm up to 48 hours
• Minimum/maximum temperature memory and 16-event log resettable by the user
• Free contact on the electronic board for remote alarms
• Alarm display even without power

Technical data
Refrigerant: R290
Consumption: 1.4 kWh/24h
Power input / Current: kW 0.17+0.17 / A 1+1
Start-up current: A 3+3
Noise: <50 dBA
Heat emitted (EN 12900): W 58
Max number of shelves: 3+3
Shelf dimensions: 56 x 55 cm
Max number of drawers: 5+5
Internal drawer size with dividers (LxDxH) (x n.spaces): cm 15 x 50 x 7.5 (3)
Internal drawer size without dividers (LxDxH): cm 49 x 50 x 7.5

Available accessories (on request)

• Key lock
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for model 500
• Sliding aluminium drawer with/without dividers for model 500
• Locking drawer for narcotics
• Plexiglass front riser for drawer
• Wire rack (various sizes)
• Wheel kit (2 with brake) for model 500
• Internal power socket, cable glands, probes and alternative power supplies on request

Characteristics / technical specifications

• Model / Series: MEDIKA 2T®
• Commercial name: MEDIKA 2T 500 ECT-F PLUS
• Code: MET0503
• Capacity: 250+250 L (510 L spec)
• Temperature range: +2 / +15 °C
• Refrigerant: R290
• Consumption: 1.4 kWh/24h
• Power input: 0.17+0.17 kW
• Noise: <50 dBA
• External dimensions: 72 x 76 x 208 cm
• Shelf dimensions: 56 x 55 cm
• Refrigeration type: professional fan-forced
• Insulation type: polyurethane foam 43 kg/m3
• Lighting: Full LED
• Control: ECT-F PLUS (LCD display, backup battery, event log, clean contact)
