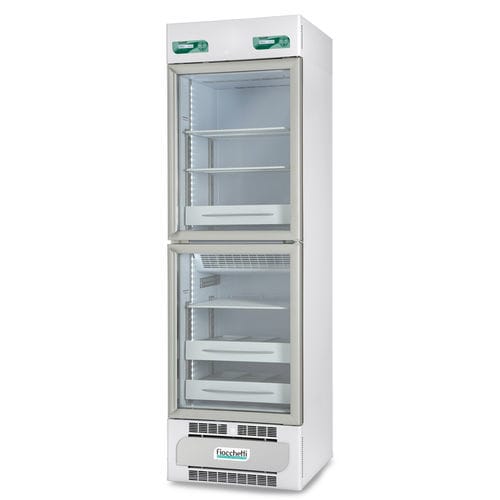

Pharmacy refrigerator MEDIKA 2T 400

for vaccinesmedicalupright

Brief description
Mid-size pharmacy bestseller refrigerator, 400 litres (200+200) with dual compartment and dual motor, for storage of medicines and vaccines at different positive temperatures, equipped with 2 glass doors.

Main features

• Temperature range: +2/+15°C | +2/+15°C
• Capacity/Litreage: 358 L (12.64 cu ft)
• External dimensions (WxDxH): 60 x 66 x 202 cm
• Controller type: ECT-F

Extended description
The MEDIKA 2T® series features dual compartments and dual motors to maintain medicines and vaccines at separate positive temperatures. Glass doors and fully customizable interiors allow clear organization and monitoring of pharmaceutical stocks.

Designed primarily for use in pharmacies, the MEDIKA 2T series meets international standards and official pharmacopeia requirements for products that require different positive temperature ranges.

Doors and closures
Both doors are tempered glass compliant with IEC 61010-1 safety standards, anti-fog and low-emissivity for improved thermal performance, with anodized aluminum profiles. Full-length ergonomic handles ensure secure grip. Magnetic gasket provides four-sided sealing with automatic spring-assisted closing and 90° door stay; door opening is reversible.

Structure and refrigeration

• Internal dimensions: 50 x 49.5 x 68.5 / 50 x 49.5 x 73 cm
• Nominal capacity: 200+200 L (total 358 L)
• Net capacity: 170+160 L
• Insulation type: high-density injected polyurethane (43 kg/m3), CFC-free, eco water injection
• Insulation thickness: 70 mm rear / 50 mm sides
• Structure: single-shell painted steel, non-toxic internal/external coating with certified antibacterial treatment; optional 18/10 AISI 304 stainless steel interior; rounded corners and basin-shaped bottom; 4 unidirectional rollers included plus two front stabilizing feet
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrost type: automatic adaptive with condensate evaporation

ECT-F electronic controller
Temperature display and setpoint control with 0.1°C resolution, accuracy ±0.3°C via alphanumeric backlit LCD (16 characters) configurable in 5 languages. 4-button membrane keypad provides immediate device status information. Display configurable in four reading modes. User-customizable password protects power on/off and setpoint changes. Controller reports multiple temperature alarms and logs events (integrated event register).

Main technical data

• Refrigerant: R290
• Consumption: 1.4 kWh/24h
• Power absorbed / Current: kW 0.17+0.17 / A 1+1
• Inrush current: A 3+3
• Noise: <50 dBA
• Heat emitted (EN 12900): W 58
• Max no. of grills: 3+3
• Grill size: 46 x 45 cm
• Max no. of drawers: 5+5
• Internal drawer w/dividers (WxDxH) (x n.spaces): 11.8 x 40 x 7.5 cm (3)
• Internal drawer without dividers (WxDxH): 39 x 40 x 7.5 cm
• Max no. of wire drawers: 5+5
• Wire drawer internal size (WxDxH): 43.5 x 40.5 x 6.2 cm

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Sliding aluminium drawer with dividers for models 170-200-250-400
• Sliding aluminium drawer without dividers for models 170-200-250-400
• Sliding wire drawer on guides for models 170-200-250-400
• Drawer with lock for narcotics
• Plexiglass front riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for models 170-200-250-400
• Cable gland Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Series: MEDIKA 2T®
• Description: positive double-temperature model with dual compartment and dual motor
• Nominal capacity: 200+200 L (total indicated 358 L)
• Net capacity: 170+160 L
• External dimensions: 60 x 66 x 202 cm
• Internal dimensions (compartments): 50 x 49.5 x 68.5 / 50 x 49.5 x 73 cm
• Insulation: injected polyurethane 43 kg/m3, CFC-free, water injection
• Refrigerant: R290
• Consumption: 1.4 kWh/24h
• Power absorbed: kW 0.17+0.17
• Noise: <50 dBA
• Control type: ECT-F (alphanumeric LCD, 4-button keypad, alarms, event log)
• Lighting: full internal LED
• Defrost: automatic adaptive
• Max number of shelves/drawers/grills: according to internal configuration (see technical data)
