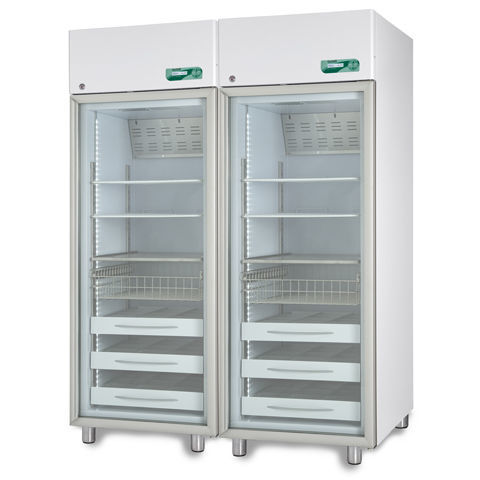

Pharmacy refrigerator MEDIKA 2T 1500 ECT-F

for vaccinesfor hospitalsfor clinical laboratories

Brief description
Unit composed of two large-capacity biological refrigerators, each 700 L, placed side by side. Each unit has a tempered glass door, independent positive temperature control (+2/+15°C), dual displays and is designed for secure storage of medicines and vaccines in pharmacies, hospitals and clinical environments.

Quick facts

• Temperature range: +2/+15°C | +2/+15°C
• Nominal capacity: 700 + 700 L (total 1400 L); Net capacity: 620 + 620 L
• External dimensions (W×D×H): 150 × 84.5 × 210 cm
• Controller type: ECT-F
• Refrigerant: R290

Structure and refrigeration
Internal dimensions per compartment: 60 × 68 × 150 cm. Insulation: injected high-density polyurethane (43 kg/m³), 75 mm thickness, CFC-free. Monocoque structure in white coated steel with antibacterial treatment or internal 18/10 AISI 304 stainless steel. Full-height internal LED lighting. Forced-air professional refrigeration with adaptive automatic defrost and condensate evaporation.

Door features and safety
Two tempered glass doors compliant with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance. Anodized aluminum profiles, full-length ergonomic handles, magnetic gasket on four sides, automatic closing spring and 90° door stay.

ECT-F ELECTRONIC CONTROLLER

• Temperature display and setting with 0.1°C resolution
• Accuracy: ±0.3°C
• 16-character backlit alphanumeric LCD, configurable in 5 languages
• 4 membrane keys, intuitive user interface
• Display configurable in four reading modes
• Customizable password for power and set-point protection
• Alarms: three main temperature alarm types; event log for 12 events

Main technical data

• Refrigerant gas: R290
• Energy consumption: 1 + 1 kWh/24h
• Power input / Current: 0.12 + 0.12 kW / 0.7 + 0.7 A
• Starting current: 2.5 + 2.5 A
• Noise level: <50 dBA
• Heat emission (EN 12900): 40 + 40 W
• Max shelves: 7 + 7 (shelf size: 56 × 65 cm)
• Max drawers: 14 + 14
• Wire baskets: 7 + 7 (internal size: 53.8 × 60.5 × 14.8 cm)

Accessories available on request

• Key lock
• DMLP DIGITAL MONITOR
• DMLP PRINTER
• Shelves for 700–1500 models (standard and stainless steel)
• Sliding aluminum drawer with or without dividers for 700–1500 models
• Plexiglass front riser for drawer
• Drawer with lock for narcotics
• Sliding wire basket
• Wire racks 14×42×15 cm or 14×50×15 cm (max 3 per shelf)
• Sliding wire drawer on guides for 700–1500 models
• Wheel kit (2 with brake) for model 700
• Internal power outlet
• Cable gland Ø 35 mm with plug
• Ø 15 mm hole
• Humidity probe
• PT100 probe with free contacts
• 220V/1~/60Hz or 115V/1~/60Hz power supply
• Voltage stabilizer
• Cage packaging

Characteristics / technical specifications

• Commercial name: MEDIKA 2T 1500 ECT-F
• Product code on sheet: Cod. MED0701 (x2)
• Model: assembly of two 700 L refrigerators
• Temperature range: +2/+15°C (both compartments)
• Total nominal capacity: 700 + 700 L (net 620 + 620 L)
• Internal dimensions per compartment: 60 × 68 × 150 cm
• External dimensions (W×D×H): 150 × 84.5 × 210 cm
• Insulation: injected polyurethane, 43 kg/m³, 75 mm, CFC-free
• Internal materials: antibacterial coated steel or AISI 304 stainless steel
• Doors: 2 tempered glass doors, anti-fog, low-emissivity; anodized aluminum profiles; 90° door stay
• Systems: dual compartment, dual compressor, dual display, alarms (12-event log)
• Control: ECT-F, 0.1°C resolution, ±0.3°C accuracy, 16-char display, 5 languages, 4-key keypad
• Refrigerant: R290
• Energy consumption: 1 + 1 kWh/24h
• Power input: 0.12 + 0.12 kW; Current: 0.7 + 0.7 A
• Starting current: 2.5 + 2.5 A
• Noise: <50 dBA
• Defrost: adaptive automatic with condensate evaporation
• Lighting: full-height LED
• Internal configurations: up to 7 + 7 shelves, up to 14 + 14 drawers, modular accessories
