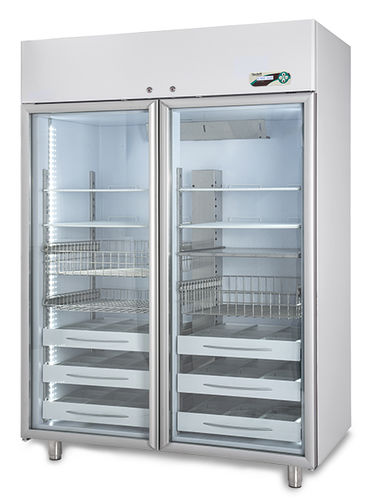

Laboratory refrigerator MEDIKA® 1500 ECT-F PLUS

for vaccinesfor pharmaciesfor hospitals

Overview
Large-capacity pharmaceutical and vaccine refrigerator with two glass doors and positive temperature control. Suitable for pharmacies, laboratories, hospitals and private clinics.

Main features

• Temperature range: +2 / +15°C
• Net capacity: 1355 L (48.87 cu ft)
• Nominal capacity: 1500 L (52.97 cu ft)
• External dimensions: 144 x 83 x 207 cm
• Controller: ECT-F PLUS

Description
The MEDIKA® series pharmaceutical and vaccine refrigerators feature a clean, functional design with glass doors and a customizable internal layout with shelves, drawers or baskets to optimise storage. Designed for use in pharmacies, hospital wards, medical, aesthetic, dental and ophthalmic practices, laboratories and the pharmaceutical industry. Compliant with applicable international standards.

Doors and closures
The doors are tempered glass according to IEC 61010-1 safety standards, anti-condensation and low-emissivity glass for improved thermal performance, with anodised aluminium profiles. Full-length ergonomic handle. Magnetic gasket on all four sides, automatic spring-assisted closing and 90° door stay.

Structure and refrigeration

• Internal dimensions: 130 x 67 x 150 cm
• Nominal capacity: 1500 L (52.97 cu ft)
• Net capacity: 1355 L (48.87 cu ft)
• Insulation: injected high-density polyurethane (43 kg/m3), CFC-free, water-blown ecological injection
• Insulation thickness: 70 mm
• Construction: monocoque body in white coated steel with certified antibacterial treatment or internal AISI 304 18/10 stainless steel; rounded corners and recessed base
• 4 height-adjustable feet
• Interior lighting: full-height LED
• Cooling type: professional forced-air refrigeration
• Defrost type: automatic adaptive with condensate evaporation

ECT-F PLUS controller

• Temperature display and setting with 0.1°C resolution
• Accuracy: ±0.3°C
• 16-character backlit alphanumeric LCD display, configurable in 5 languages
• 4-key membrane keypad
• Backup battery for power-failure alarm up to 48 hours
• Min/max temperature memory
• Clean contact on PCB for remote alarm
• Display configurable in different reading modes
• Customisable password to protect power on/off and set-point changes
• Event log: stores 16 events plus min/max temperature, user-resettable

Technical data

• Refrigerant gas: R290
• Consumption: 2.5 kWh/24h
• Power / Current: 0.4 kW / 1.8 A
• Starting current: 6 A
• Noise level: <55 dBA
• Heat emission (EN 12900): 125 W
• Max number of grids: 14
• Grid size: 56 x 65 cm
• Max number of drawers: 28
• Internal drawer size with dividers (LxDxH) (x n. spaces): 15 x 60 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 49 x 60 x 7.5 cm
• Max number of wire baskets: 14
• Wire basket internal size (LxDxH): 53.8 x 60.5 x 14.8 cm
• Max number of wire drawers: 28
• Wire drawer internal size (LxDxH): 53.8 x 60.5 x 6.2 cm

Accessories available on request

• Lock with key
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Graphic chart recorder
• Shelf for models 700-1500
• Stainless-steel shelf for models 700-1500
• Perforated stainless-steel shelf for models 700-1500
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Sliding aluminium drawer with dividers for models 700-1500
• Sliding aluminium drawer without dividers for models 700-1500
• Front plexiglass riser for drawer
• Sliding wire basket
• Sliding wire drawer on guides for models 700-1500
• Wheel kit (2 with brake) for model 1500
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Technical characteristics / specifications

• Model: MEDIKA® 1500 ECT-F PLUS
• Temperature range: +2 / +15°C
• Net capacity: 1355 L
• Nominal capacity: 1500 L
• External dimensions: 144 x 83 x 207 cm
• Internal dimensions: 130 x 67 x 150 cm
• Insulation: polyurethane 43 kg/m3, thickness 70 mm
• Refrigerant gas: R290
• Consumption: 2.5 kWh/24h
• Noise level: <55 dBA
• Control type: ECT-F PLUS with alarm functions, min/max memory and backup battery
