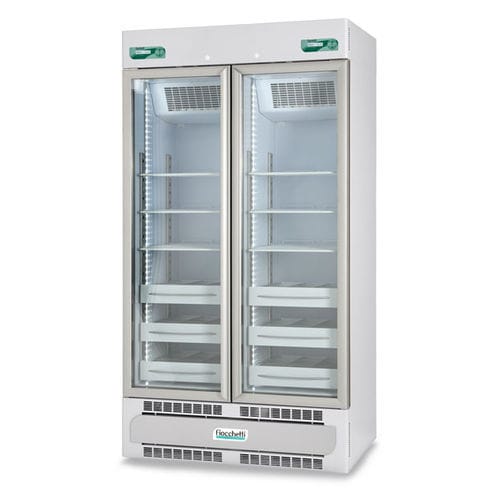

Pharmacy refrigerator MEDIKA 2T 600 ECT-F

upright2 doorswith glass door

Brief description
Pharmaceutical and vaccine refrigerator with two independent compartments and dual compressors totaling 600 L (300+300). Equipped with two side-by-side tempered low-emissivity glass doors and positive temperature control in both compartments, suitable for pharmacies, clinics and medical facilities.

Main features

• Independent double compartment with dual compressors (300+300 L, total 600 L)
• Two anti-condensation, low-emissivity tempered glass doors with anodized aluminum profiles
• Positive temperature in both compartments (+2/+15°C | +2/+15°C)
• Two displays with alarms and ECT-F electronic controller
• Full-length ergonomic handles, four-sided magnetic gasket, 90° door stay for automatic hold-open
• Full-height internal LED lighting

Structure and refrigeration
Internal dimensions: 44 x 48.5 x 140 cm (each compartment). Nominal capacity: 300+300 L (total 604 L). Net capacity: 265+265 L. High-density injected polyurethane insulation 43 kg/m3, CFC-free, water-blown ecological injection. Insulation thickness: 70 mm (rear) / 40 mm (sides). Monocoque structure in white plastic-coated steel, antibacterial treatment certified; rounded corners and tub-shaped bottom. Four unidirectional rollers and two front stabilizing feet included. Professional ventilated refrigeration with adaptive automatic defrost and condensate evaporation.

ECT-F ELECTRONIC CONTROLLER
Temperature display and set-up with 0.1°C resolution, accuracy ±0.3°C. Backlit alphanumeric LCD (16 characters) configurable in 5 languages. Membrane keypad with 4 keys, configurable password for power on/off and set-point protection. Display configurable in four reading modes. Alarm system records up to 12 temperature events and signals three main alarm types.

Accessories available on request

• Lock with key
• Shelf for model 600 2T
• Sliding aluminium drawer with dividers for model 600 2T - 300
• Sliding aluminium drawer without dividers for model 600 2T - 300
• Plexiglass front riser for drawer
• Internal power outlet
• Cable passthrough hole Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage-type packaging

Technical specifications

• Designation: MEDIKA 2T 600 ECT-F
• Product code: MET0601
• Temperature range: +2/+15°C | +2/+15°C
• Capacity / Volume: 604 L
• External dimensions (W×D×H): 104 × 66 × 196 cm
• Electronics type: ECT-F
• Internal dimensions (per compartment): 44 × 48.5 × 140 cm
• Nominal capacity: 300+300 L
• Net capacity: 265+265 L
• Insulation: polyurethane foam 43 kg/m3 (CFC-free)
• Insulation thickness: 70 mm (rear) / 40 mm (sides)
• Structure: monocoque in white plastic-coated steel with antibacterial treatment
• Internal lighting: full-height LED
• Refrigeration type: professional ventilated
• Defrost: automatic adaptive with condensate evaporation
• Refrigerant gas: R290
• Consumption: 1.8 kWh/24h
• Absorbed power: kW 0.19 + 0.19
• Current: A 1.3 + 1.3
• Inrush current: A 3 + 3
• Noise level: <50 dBA
• Heat emitted EN 12900: W 75
• Max grids: 6 + 6 (grid size 40 × 47 cm)
• Max drawers: 12 + 12
• Internal drawer with dividers (W×D×H) (per spaces): 10 × 45 × 7.5 cm (3 spaces)
• Internal drawer without dividers (W×D×H): 33 × 45 × 7.5 cm
