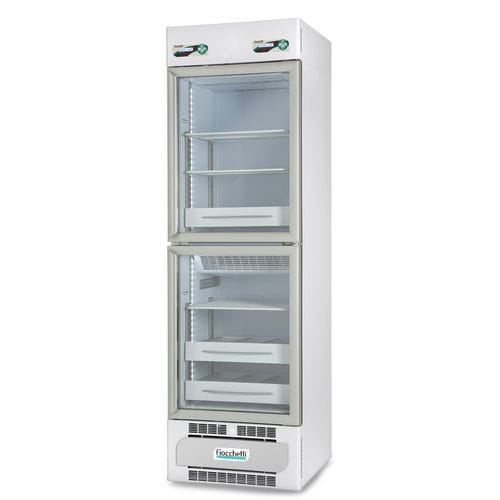

Pharmacy refrigerator MEDIKA 2T 400 ECT-F PLUS

medicalupright2 doors

Brief description
Mid-size medical refrigerator widely used in pharmacies and healthcare facilities. Capacity 400 L (200+200) with two independent compartments and dual compressors for storage of medicines and vaccines at different positive temperatures. Two tempered, anti-fog, low-emissivity glass doors. Code MET0403

Main features

• Dual compartment and dual compressors for storage at different positive temperatures
• 2 tempered glass doors with anti-fog and low-emissivity coating and anodized aluminum profiles
• Full-length ergonomic handle
• Magnetic gasket sealing on all four sides, automatic return spring door closing with 90° stay-open and reversible opening
• Internal full-height LED lighting
• Fully configurable interior for ordering and stock control

Summary data (displayed on the sheet)

• Temperature range: +2/+15°C | +2/+15°C
• Capacity/Litreage: indicated on page as 400 L (200+200) and 358 L (12.64 cu ft) — nominal capacity 200+200 L, net capacity 170+160 L
• External dimensions (W×D×H): 60 × 66 × 202 cm
• Controller type: ECT-F PLUS

Structure and refrigeration
Internal dimensions: 50 × 49.5 × 68.5 / 50 × 49.5 × 73 cm
Nominal capacity: 200+200 L (7.06+7.06 cu ft)
Net capacity: 170+160 L (6.01 + 5.66 cu ft)
Insulation: high-density injected polyurethane (43 kg/m3), CFC-free with eco-friendly water injection
Insulation thickness: 70 mm back / 50 mm sides
Structure: single-shell construction in white plastic-coated steel, antibacterial treatment certified, or internal AISI 304 18/10 stainless steel; rounded corners and tray-style bottom; 4 unidirectional rollers included and two front feet
Internal lighting: full-height LED
Refrigeration type: professional fan-assisted cooling
Defrost: automatic adaptive with condensation water evaporation

ECT-F PLUS electronic controller
Temperature display and setting with 0.1°C resolution, accuracy +/- 0.3°C. Alphanumeric backlit LCD display (16 characters) configurable in 5 languages; 4-key membrane keypad. Backup battery for power-failure alarm up to 48 hours. Min/max temperature memory and clean contact on the electronic board for remote alarms. Display configurable in four read modes. Keypad can be password-protected for power on/off and set-point changes; alarms visible even without power.
Alarms: multiple temperature alarms including high temperature due to power failure; logs 16 events plus absolute min/max temperature, user-resettable; clean contact for remote signaling.

Accessories available on request

• Key lock
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless shelf for models 170-200-250-400
• Aluminium sliding drawer with/without dividers for models 170-200-250-400
• Wire sliding drawer on guides for models 170-200-250-400
• Plexiglass front riser for drawer
• Locking drawer for narcotics
• Wire rack 14 × 42 × 15 H cm (max 3 per shelf) and 14 × 50 × 15 H cm
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable gland hole Ø 35 mm with plug / Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz or 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Notes
Series: MEDIKA 2T ®. Glass doors compliant with IEC 61010-1; tempered, anti-fog and low-emissivity glass. Product suitable for pharmacies and for storage of medicines and vaccines requiring dual positive temperature control.
