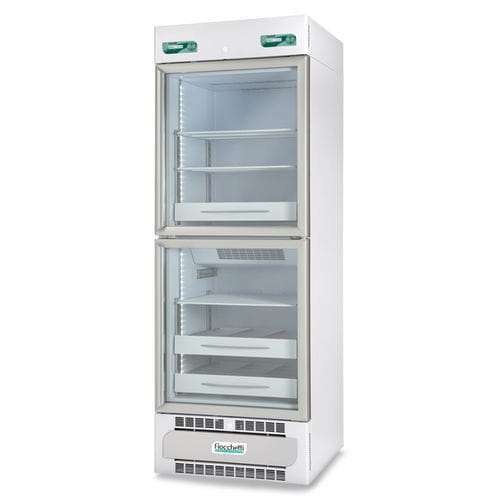

Vaccine refrigerator MEDIKA 2T 500 ECT-F

for pharmaciesmedicalcabinet

Summary
The MEDIKA 2T 500 ECT-F is a medium-size medical refrigerator designed for pharmacy and clinical use. It features two independent compartments with separate refrigeration systems and an electronic ECT-F controller with display and alarms for storage of medicines and vaccines at positive temperatures.

Main features

• Capacity: 250+250 L (nominal 250+250 L; net 249+230 L).
• Temperature range: +2/+15°C for each compartment (independent positive-temperature compartments).
• External dimensions (W×D×H): 72 × 76 × 208 cm.
• Internal compartment dimensions: 60 × 58.8 × 70 cm / 60 × 58.8 × 74 cm.
• Electronic control: ECT-F controller with alphanumeric backlit LCD and alarm functions.

Structure and refrigeration

• Single-piece steel cabinet coated in white non-toxic paint with certified antibacterial treatment (internal/external).
• Rounded corners and tank-type bottom for easy cleaning.
• Insulation: high-density injected polyurethane (43 kg/m3), CFC-free; ecological water-based injection.
• Insulation thickness: 75 mm (rear) / 60 mm (sides).
• Professional forced-air ventilation refrigeration with adaptive automatic defrost and condensate evaporation.
• Internal full-height LED lighting.
• Mobility: 4 unidirectional rollers included and two front feet.

Door and internal accessories
Tempered glass doors compliant with IEC 61010-1, anti-condensation and low-emissivity with anodized aluminium profiles. Magnetic gasket on four sides, automatic return spring closing with 90° door stop; reversible opening. Full-length ergonomic handles. Internal fittings are customizable.

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character alphanumeric backlit LCD, configurable in multiple languages. Membrane keyboard with 4 keys, option to set password to protect power on/off and set-point changes. Alarm signalling and event logging: three main temperature alarm types and a 12-event register.

Technical data

• Refrigerant gas: R290.
• Consumption: 1.4 kWh/24h.
• Power absorbed / Current: 0.17+0.17 kW / 1+1 A.
• Starting current: 3+3 A.
• Noise level: <50 dBA.
• Heat emission (EN 12900): 58 W.
• Max shelves: 3+3 (grid size: 56 × 55 cm).
• Max drawers: 5+5.

Accessories available on request

• Lock with key
• Shelf for model 500
• Sliding aluminium drawer with dividers for model 500
• Sliding aluminium drawer without dividers for model 500
• Lockable narcotics drawer
• Wire rack 14 × 42 × 15 cm (max 3 per shelf)
• Wire rack 14 × 50 × 15 cm (max 3 per shelf)
• Plexiglass drawer front riser
• Wheel kit (2 wheels with brake) for model 500
• Internal power outlet
• Cable gland Ø 35 mm with plug
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Notes
Designed primarily for pharmacy use and compliant with international standards and official pharmacopeia. Anti-condensation glass doors improve inventory visibility while maintaining thermal tightness.

Technical characteristics / specifications

• Series/model name: MEDIKA 2T
• Model designation: MEDIKA 2T 500 ECT-F
• Reference code: Cod. MET0501
• Nominal capacity: 250+250 L
• Net capacity: 249+230 L
• Commercial total capacity indicated: 510 L (indicative)
• Temperature range: +2/+15°C for both compartments
• External dimensions (W×D×H): 72 × 76 × 208 cm
• Internal dimensions (per compartment): 60 × 58.8 × 70 / 60 × 58.8 × 74 cm
• Insulation: injected polyurethane 43 kg/m3
• Insulation thickness: 75 mm (rear) / 60 mm (sides)
• Refrigerant: R290
• Consumption: 1.4 kWh/24h
• Absorbed power: 0.17+0.17 kW (current 1+1 A)
• Starting current: 3+3 A
• Noise: <50 dBA
• Heat emission EN12900: 58 W
• Refrigeration type: professional forced-air
• Defrost: adaptive automatic, condensate evaporation
• Lighting: internal full-height LED
• Door type: tempered glass IEC 61010-1, anti-condensation, low-emissivity
• Max shelves: 3+3 (56 × 55 cm)
• Max drawers: 5+5
• Control type: ECT-F controller, 16-character LCD, 0.1°C resolution, ±0.3°C accuracy, alarms and event log
