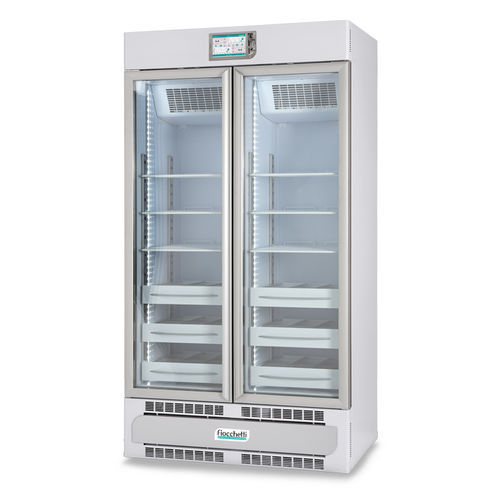

Pharmacy refrigerator MEDIKA 2T 600 TOUCH

for vaccineslaboratorycabinet

Overview
Pharmacy refrigerator with dual independent cooling units, total nominal capacity 604 L (300+300 L), designed for storage of medicines and vaccines at positive temperatures. Two tempered glass doors, positive temperature setting in both compartments, data recording and developed for pharmacy use. Code: MET0602.

Main product data

• Temperature range: +2/+15°C (both compartments)
• Capacity: 604 L (300+300 nominal; net capacity 265+265 L)
• External dimensions (WxDxH): 104 x 66 x 196 cm
• Inner dimensions (each compartment): 44 x 48.5 x 140 cm
• Electronic controller: TOUCH (7" full touch screen)

Structure and refrigeration

• Inner dimensions (each compartment): 44 x 48.5 x 140 cm
• Nominal capacity: 300+300 L (10.59+10.59 cu ft)
• Net capacity: 265+265 L (9.35+9.35 cu ft)
• Insulation: PUF injected at very high density (43 kg/m3), CFC-free, water-foam based injection
• Insulation thickness: 70 mm (back) / 40 mm (sides)
• Structure: monocoque type, plasticized atoxic white steel interior/exterior with antibacterial coating; inner bottom with rounded corners
• Mobility / stability: 4 unidirectional rollers included and 2 front feet for maximum stability
• Interior lighting: full LED along entire inner chamber, adjustable brightness
• Refrigeration type: professional ventilated
• Defrost type: automatic, adaptive, with vaporization of condensate water
• Power consumption reduction: Night & Day function

Doors and sealing

• Doors: tempered glass according to IEC 61010-1; anti-fog and low emissivity glass for improved thermal performance
• Profiles: anodized aluminium
• Ergonomics: full-length ergonomic handle
• Gasket: magnetic sealing on all four sides
• Door hardware: automatic lock with return spring; door stop at 90°

Controller (7" FULL TOUCH SCREEN)

• 7" full touch screen interface, displays all dynamic values with 0.1°C resolution and ±0.3°C accuracy
• Standard functions: temperature and alarm recording; multi-trace real-time graph; current temperature and editable set-point; editable alarm limits; energy consumption display; battery status (optional)
• Ports/slots: SD card (data history), USB port (system download/update), SIM card slot (for GSM module, optional)
• Connectivity: integrated Web Server for LAN (RJ45) and MODBUS TCP/IP network connection
• Safety devices: anti-freeze and anti-overheating protection; dry contact for remote alarm signal
• Additional accessories (available or installable): electronic lock; acoustic and visual alarm for power failure; DMLP TOUCH module for independent recording; GSM and Wi‑Fi modules; external terminal board; local and cloud monitoring systems
• Alarms: acoustic and visual alarms, silenceable, with automatic recording

Technical data

• Refrigerant gas: R290
• Energy consumption: 1.8 kWh/24h
• Power absorption / current: kW 0.19 + 0.19 / A 1.3 + 1.3
• Inrush current: A 3 + 3
• Noise level: <50 dBA
• Heat rejection (EN 12900): W 75
• Maximum no. of shelves: 6 + 6
• Wire shelf dimensions: 40 x 47 cm
• Maximum no. of drawers: 12 + 12
• Inner dimensions of drawers with dividers (each compartment): 10 x 45 x 7.5 cm (3)
• Inner dimensions of drawers without dividers (LxWxH): 33 x 45 x 7.5 cm

Applications and target use

• Designed for pharmacies and vaccine storage where two positive temperature compartments are required
• Compliance: developed to comply with international standards and official pharmacopoeia requirements for drug/vaccine storage

Characteristics / technical specifications

• Model / series: MEDIKA 2T 600 TOUCH (Code MET0602)
• Temperature range: +2/+15°C (both compartments)
• Total nominal capacity: 604 L (300+300 L); net 265+265 L
• External dims (WxDxH): 104 x 66 x 196 cm
• Inner dims (each compartment): 44 x 48.5 x 140 cm
• Insulation: PUF 43 kg/m3; thickness 70 mm back / 40 mm sides
• Doors: tempered, anti-fog, low emissivity glass; anodized aluminium profiles; full-length handle; magnetic gasket; automatic lock; door stop 90°
• Lighting: full-length adjustable LED
• Refrigerant: R290; consumption 1.8 kWh/24h; noise <50 dBA; heat rejection 75 W
• Controller: 7" full touch screen, 0.1°C resolution, ±0.3°C accuracy; data recording, SD/USB/SIM slots; LAN (RJ45) and MODBUS TCP/IP
• Accessories available: GSM/Wi‑Fi modules, DMLP TOUCH, electronic lock, external terminal board, power failure alarm kit, shelves and drawers for model 600 2T, monitoring solutions
