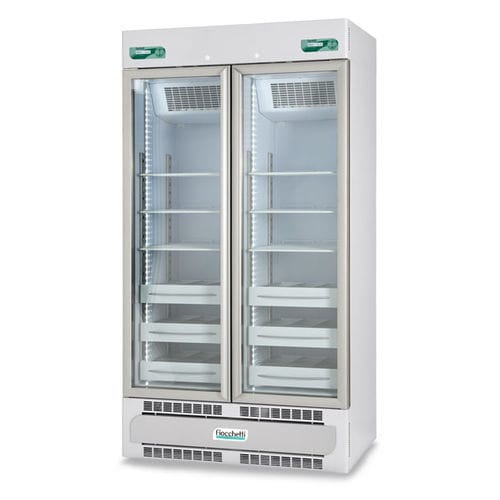

Pharmacy refrigerator MEDIKA 2T 600 ECT-F

for vaccinesupright2 doors

Overview
Pharmaceutical and vaccine refrigerator with double compartment and dual compressors, total capacity 604 L (300+300 nominal). Two adjacent tempered glass doors with positive temperature range in both compartments, designed for pharmacy use. Tempered, anti-condensation and low-emissivity glass doors; fully customizable interior for stock management.

Key data

• Temperature range: +2/+15°C | +2/+15°C
• Capacity: 604 L (21.33 cu ft) / nominal 300+300 L
• External dimensions (W×D×H): 104 × 66 × 196 cm
• Controller type: ECT-F
• Product code: MET0601

Detailed description
The MEDIKA 2T series refrigerators feature two compartments and dual compressors to store medicines and vaccines at different positive temperatures. Glass doors and a fully customizable interior enable organized stock control. Engineered for pharmacy applications and compliant with international standards and official pharmacopeia.

Door features and accessories
The two doors are made of tempered glass compliant with IEC 61010-1 safety standards, anti-condensation and low-emissivity for improved thermal performance, with anodized aluminium frames. Full-length ergonomic handles ensure secure grip. Magnetic gaskets on all four sides, automatic spring return closure and 90° door stay.

Structure and refrigeration
Internal dimensions: 44 × 48.5 × 140 cm (per compartment). Nominal capacity: 300+300 L. Net capacity: 265+265 L. Insulation: high-density injected polyurethane (43 kg/m3), CFC-free with water-blown ecological injection. Insulation thickness: 70 mm (rear) / 40 mm (sides). One-piece painted steel structure, antibacterial certified internal/external finish; rounded corners and tub-shaped base; four unidirectional rollers and two front feet. Full-height internal LED lighting. Refrigeration type: professional forced-air. Defrost: automatic adaptive with condensate evaporation.

ECT-F electronic controller
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C; 16-character backlit alphanumeric LCD configurable in 5 languages; 4-button membrane keypad communicating operational status. Display configurable in four read modes. Password protection for power on/off and set-point changes. Alarms: three main temperature alarm types and 12-event log.

Technical data
Refrigerant type: R290
Consumption: 1.8 kWh/24h
Power absorbed / Current: kW 0.19 + 0.19 / A 1.3 + 1.3
Starting current: A 3+3
Noise: <50 dBA
Heat emitted (EN 12900): W 75
Max grids: 6+6 (grid size: 40 × 47 cm)
Max drawers: 12+12
Internal drawer with dividers (L×D×H) (per space): 10 × 45 × 7.5 cm (3)
Internal drawer without dividers (L×D×H): 33 × 45 × 7.5 cm

Available accessories (on request)

• Lock with key
• Shelf for model 600 2T
• Sliding aluminium drawer with dividers for model 600 2T - 300
• Sliding aluminium drawer without dividers model 600 2T - 300
• Plexiglass front riser for drawer
• Internal power outlet
• Cable pass-through hole Ø 35 mm with plug / hole Ø 15 mm
• Humidity probe / PT100 probe with free contacts
• Power supply 220V/1~/60Hz or 115V/1~/60Hz
• Voltage stabilizer
• Crate packaging

Characteristics / technical specifications

• Series: MEDIKA 2T ®
• Commercial model: MEDIKA 2T 600 ECT-F
• Total capacity: 604 L (nominal 300+300 L)
• Temperature range: +2/+15°C in both compartments
• External dimensions (W×D×H): 104 × 66 × 196 cm
• Internal dimensions (per compartment): 44 × 48.5 × 140 cm
• Insulation: injected polyurethane (43 kg/m3), CFC-free
• Refrigerant type: R290
• Consumption: 1.8 kWh/24h
• Power absorbed: 0.19 + 0.19 kW
• Current: 1.3 + 1.3 A
• Starting current: 3+3 A
• Noise: <50 dBA
• Internal lighting: Full LED
• Defrost: automatic adaptive with condensate evaporation
• Controller: ECT-F (16-character LCD, 0.1°C resolution, ±0.3°C accuracy, alarms, 12-event log)
• Doors: 2 tempered glass doors, anti-condensation, low-emissivity
• Gasket: magnetic, automatic spring closure with 90° stay
• Interior configurations: grids and drawers up to 6+6 grids and 12+12 drawers
