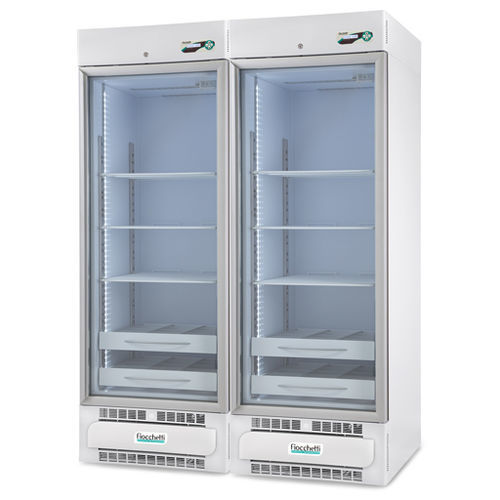

Pharmacy refrigerator MEDIKA 2T 1000 ECT-F PLUS

for vaccinesfor hospitalsmedical

General description
Model composed of two biological refrigerators placed side by side of 500 L each, with two opposing glazed doors, two displays and positive temperature control in both compartments; suitable for storage of medicines and vaccines in pharmacies and hospitals.

Main performance

• Temperature range +2/+15°C in both compartments
• Independent double compartment with dual motors and dual displays
• Designed for storage of pharmaceuticals and vaccines, compliant with international standards and official pharmacopeia

Structure and refrigeration

• Internal dimensions: 60 x 58 x 150 cm (per compartment)
• Nominal capacity: 500+500 L (17.65+17.65 cu ft)
• Net capacity: 527+527 L (18.61+18.61 cu ft)
• Insulation type: injected high-density polyurethane (43 kg/m3), water-based ecological injection, CFC-free
• Insulation thickness: 75 mm (rear) / 60 mm (sides)
• Construction: single-shell cabinet in white plastified non-toxic steel with certified antibacterial treatment; optional interior in AISI 304 stainless steel 18/10. Rounded corners and sump-type base. Four directional rollers included and two front leveling feet for maximum stability.
• Internal lighting: full-height LED
• Refrigeration type: professional forced-air ventilation
• Defrost type: automatic adaptive defrost with condensate evaporation

Doors and safety
Doors in tempered safety glass compliant with IEC 61010-1, anti-fog and low-emissivity for improved thermal performance; anodized aluminium profiles, full-length ergonomic handle. Magnetic gasket on all four sides, automatic return spring closing and 90° hold-open.

ECT-F PLUS electronic controller

• Temperature display and setting with 0.1°C resolution; accuracy ±0.3°C; alphanumeric LCD 16-character backlit display; configurable in 5 languages; 4-button membrane keypad.
• Functions: backup battery for power-failure alarm up to 48 hours; min/max temperature memory; clean contact for remote alarm interfacing; configurable display modes; password protection for power on/off and set-point changes; event recording (up to 16 events) and alarm display even without mains power.

Accessories available on request

• Key lock
• External clean contacts for ECT-F PLUS
• Anti-freeze safety
• DIN 13277 compliance (for ECT-F PLUS)
• Shelf for 500 model
• Sliding aluminium drawer with dividers for 500 models
• Sliding aluminium drawer without dividers for 500 model
• Lockable drawer for narcotics
• Plexiglass front riser for drawer
• Wire rack 14 x 42 x 15 cm (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm (max 3 per shelf)
• Wheel kit (2 with brake) for model 500
• Internal power socket
• Cable gland Ø 35 mm with cap
• Hole Ø 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabilizer
• Cage packaging

Technical characteristics / specifications

• Model designation: MEDIKA 2T 1000 ECT-F PLUS
• Manufacturer code: Cod. MED0503 (x2)
• Temperature range: +2/+15°C | +2/+15°C
• Total capacity: 1054 L (37.22 cu ft)
• External dimensions (WxDxH): 144 x 76 x 208 cm
• Internal dimensions per compartment: 60 x 58 x 150 cm (x2)
• Nominal capacity: 500+500 L
• Net capacity: 527+527 L
• Insulation type: injected polyurethane, density 43 kg/m3, water-based ecological injection (CFC-free)
• Insulation thickness: 75 mm (rear) / 60 mm (sides)
• Internal/external materials: white plastified non-toxic steel with antibacterial treatment; optional interior in AISI 304 stainless steel 18/10
• Lighting: full-height LED
• Refrigerant type: R290
• Electric consumption: 1+1 kWh/24h
• Power input / Current: kW 0.17 + 0.17 / A 1 + 1
• Starting current: A 3 + 3
• Noise level: <45 dBA
• Heat emitted (EN 12900): W 40+40
• Refrigeration type: professional forced-air
• Defrost type: automatic adaptive with condensate evaporation
• Max number of shelves: 7+7
• Shelf dimensions: 56 x 55 cm
• Max number of drawers: 14+14
• Internal drawer size with dividers (LxDxH) (x n.slots): 15 x 50 x 7.5 cm (3)
• Internal drawer size without dividers (LxDxH): 49 x 50 x 7.5 cm
• Controller type: ECT-F PLUS (16-character alphanumeric LCD, 5 languages, 4-button keypad)
• Controller functions: 0.1°C resolution, ±0.3°C accuracy, backup battery for power-failure alarm up to 48 h, min/max temperature memory, clean contact for remote alarms, event logging (16), password customization
