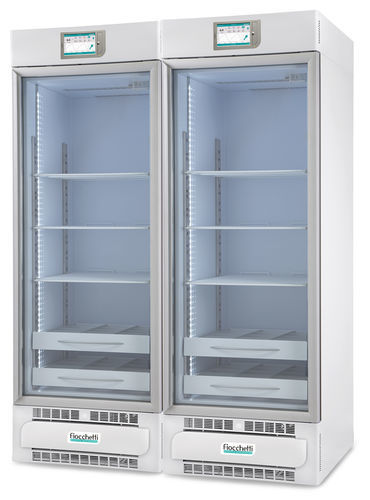

Pharmacy refrigerator MEDIKA 2T 1000 TOUCH

for vaccineshospitallaboratory

Product overview
Column-type pharmaceutical refrigerator for medicines and vaccines with tempered glass doors, designed for positive temperature storage and continuous recording. Double compartment with two independent cooling units to maintain two separate +2/+15°C ranges. Suited for pharmacies, laboratories, hospitals and clinics.

Main highlights

• Two independent compartments: +2/+15°C | +2/+15°C
• Nominal / net capacity: 500+500 L nominal — net 527+527 L
• Total capacity: 1,054 L
• External dimensions (WxDxH): 144 x 76 x 208 cm
• Electronic controller: TOUCH (7" full touch screen)

Design and doors
Tempered safety glass doors according to IEC 61010-1, anti-fog and low-emissivity glass with anodized aluminium frames. Full-length ergonomic handle, magnetic gasket on four sides, automatic return with door stop at 90°.

Structure and refrigeration

• Inner dimensions (each compartment): 60 x 58 x 150 cm
• Insulation: injected PUF 43 kg/m3, CFC-free, water-based injection; thickness 75 mm rear / 60 mm sides
• Monocoque structure with plasticized antibacterial white steel interior/exterior; optional AISI 304 stainless steel interior; rounded inner corners
• Mobility & stability: 4 unidirectional rollers + 2 front feet
• Interior lighting: full-height adjustable LED
• Refrigeration: professional ventilated; adaptive automatic defrost with condensate vaporization
• Energy saving: Night & Day function

Electronic controller (7" FULL TOUCH SCREEN)

• Microprocessor controller with 7" full touch interface; resolution 0.1°C; accuracy ±0.3°C
• Standard: temperature and alarm recording; multi-trace real-time graph; editable set-point and alarm limits
• Ports: SD card slot (history), USB port (download/update), SIM slot for GSM module (optional)
• Connectivity: integrated web server (LAN RJ45), MODBUS TCP/IP
• Safety: anti-freeze and anti-overheat devices; dry contact for remote alarm
• Optional accessories: electronic lock, power-failure alarm, DMLP TOUCH independent recorder, GSM/Wi‑Fi modules, external terminal board, local/cloud monitoring
• Alarms: acoustic and visual, silenceable, with automatic logging

Technical data

• Refrigerant: R290
• Energy consumption: 1+1 kWh/24h
• Power absorption / current: 0.17+0.17 kW / 1+1 A
• Inrush current: 3+3 A
• Noise level: <45 dBA
• Heat rejection (EN 12900): 40+40 W
• Max shelves/drawers: 7+7 shelves — 14+14 drawers
• Wire shelf dim.: 56 x 55 cm

Applications

• Designed for pharmacies and vaccine storage requiring two independent positive temperature settings
• Suitable for laboratories, hospital pharmacies and private clinics

Code / internal reference
Code MED0502 (x2)

Accessories available on request

• Gateway IOT, LAN Supervisor monitoring
• Power-failure alarm kit, electronic lock, external terminal board
• DMLP TOUCH digital monitor, GSM and Wi‑Fi modules, 4‑20 mA converter
• Shelves, drawers, wheels kit, internal power socket, access ports, humidity and PT100 probes

Technical specifications

• Model family: MEDIKA 2T (pharmacy series)
• Model: MEDIKA 2T 1000 TOUCH
• Temperature range: +2/+15°C (two independent compartments)
• Total capacity: 1,054 L — Net per compartment: 527 L
• External dims (WxDxH): 144 x 76 x 208 cm
• Inner dims (each): 60 x 58 x 150 cm
• Insulation: PUF 43 kg/m3; thickness 75/60 mm
• Refrigerant: R290
• Consumption: 1+1 kWh/24h
• Controller: 7" full touch, 0.1°C resolution, ±0.3°C accuracy; SD/USB/SIM; LAN and MODBUS TCP/IP
• Safety: anti-freeze, anti-overheat, dry contact for remote alarm
• Manufacturer: Fiocchetti
