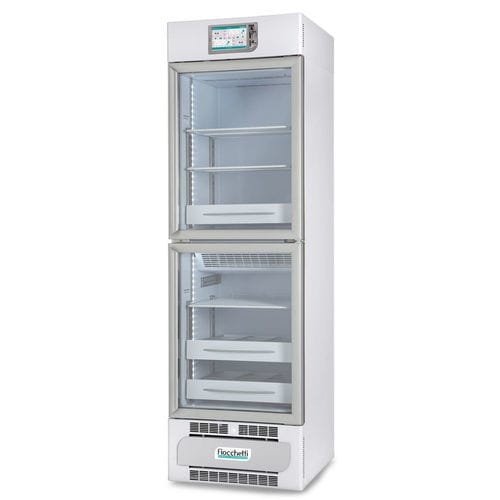

Pharmacy refrigerator MEDIKA 2T 400 TOUCH

for vaccineslaboratorycabinet

Presentation
Refrigerator for medicines and vaccines, double positive-temperature unit with temperature recording, two independent refrigeration systems and a 7" full touch screen supervising both compartments. Designed for pharmacies; available with 2 glass doors; declared capacity 400 L (200+200 L). Product code: MET0402.

Main features

• Two independent compartments each with its own refrigeration unit to maintain two distinct positive temperatures.
• 7" FULL TOUCH SCREEN for parameter display and management (resolution 0.1°C; accuracy ±0.3°C) with temperature recording.
• Tempered glass doors (IEC 61010-1), anti-fog and low-emissivity, aluminium frame and full-height ergonomic handle.
• Magnetic gasket around the perimeter, automatic return under 90° and reversible door opening.
• Internal full-height LED lighting with intensity adjustment.
• Professional forced-air refrigeration with adaptive defrost and condensate evaporation. Night & Day energy saving function.

Structure and refrigeration
Internal dimensions:
50 x 48.5 x 68.5 cm / 50 x 49.5 x 73 cm
Declared capacity:
200+200 L (7.06+7.06 cu ft)
Net capacity:
170+160 L (6.01 + 5.66 cu ft)
Insulation: high-density injected polyurethane foam (43 kg/m3), CFC-free, eco water injection.
Insulation thickness: 70 mm rear / 50 mm sides.
Structure: white antibacterial coated sheet metal internal and external or internal AISI 304 18/10 stainless steel; rounded internal corners and leak-preventing sump base. 4 unidirectional castors and 2 front feet for stability.

Electronic controller
Microprocessor controller with 7" FULL TOUCH SCREEN showing current temperature, setpoint (editable), alarm limits (editable), temperature recording, multi-trace realtime graph, energy consumption and battery status (option). Resolution 0.1°C; accuracy ±0.3°C.
Ports and recordings: SD card slot (history), USB port for download and updates, SIM slot (optional GSM). Built-in web server for LAN (RJ45) and MODBUS TCP/IP. Anti-freeze and overtemperature safety; clean contact for remote alarm transmission.
Optional accessories: electronic lock, acoustic/visual power-failure alarm, independent DMLP TOUCH recorder, GSM and Wi‑Fi modules, external terminal block, integration with local/cloud monitoring systems.

Technical data

• Refrigerant: R290.
• Consumption: 1.4 kWh/24h.
• Power absorbed: 0.17+0.17 kW (start currents indicated: 3+3 A).
• Starting current: 3+3 A.
• Noise level: <50 dBA.
• Heat emitted (EN 12900): 58 W.
• Max shelves: 3+3 (shelf size: 46 x 45 cm).
• Max drawers: 5+5; internal drawer dimensions with dividers (LxDxH): 11.8 x 40 x 7.5 cm; without dividers: 39 x 40 x 7.5 cm.
• External dimensions (LxDxH): 60 x 66 x 202 cm.
• Temperature range: +2/+15°C | +2/+15°C (dual positive settings).

Remarks
The MEDIKA 2T® series features two insulated independent compartments, glazed doors for optimized storage visibility and compliance with international standards and official pharmacopeia requirements.

Characteristics / technical specifications

• Model: MEDIKA 2T 400 TOUCH (Code MET0402).
• Series: MEDIKA 2T®.
• Declared capacity: 400 L (200+200 L); listed capacity elsewhere: 358 L — nominal vs net/usable values present on datasheet.
• Nominal capacity per compartment: 200 L + 200 L.
• Net capacity per compartment: 170 L + 160 L.
• Temperatures: +2/+15°C (dual positive, two units).
• Controller: 7" FULL TOUCH SCREEN (recording, alarms, SD, USB, SIM slot, LAN WebServer, MODBUS TCP/IP).
• Refrigerant: R290.
• Consumption: 1.4 kWh/24h.
• Power absorbed: 0.17+0.17 kW; starting current: 3+3 A.
• Noise: <50 dBA.
• External dimensions (LxDxH): 60 x 66 x 202 cm; internal dimensions and drawer details in technical data.
• Insulation: injected polyurethane 43 kg/m3, 70 mm rear / 50 mm sides.
• Internal structure: antibacterial coated sheet metal or AISI 304 18/10 stainless steel.
• Doors: tempered glass, anti-fog, low-emissivity, aluminium frame, full-height handle, magnetic gasket, reversible opening.
• Lighting: full-height LED with intensity control.
• Defrost: adaptive with condensate evaporation.
• Options: electronic lock, blackout alarm, DMLP TOUCH, GSM/Wi‑Fi modules, external terminal block, extra shelves/drawers, wheel kit.
