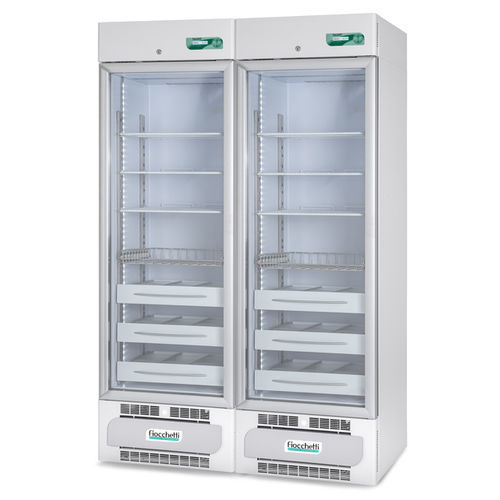

Pharmacy refrigerator MEDIKA 2T 800 ECT-F

for vaccinesfor hospitalscabinet

Description
Model composed of two side-by-side biological refrigerators of 400 L each, with two opposite glass doors, two displays and positive temperature range in both units, ideal for storage of medicines and vaccines in pharmacies and hospitals. The MEDIKA® series pharmaceutical and vaccine refrigerators feature a clean, functional design, glass doors and adjustable compartments to optimise storage.

General features

• Number of refrigerators: 2 side-by-side (composed model)
• Application: storage of medicines and vaccines in pharmacies and hospitals
• Temperature range: +2/+15°C
• Displays: 2 displays (ECT-F electronic controller)
• Number of compressors/motors: 2
• Internal lighting: full-height LED
• Doors: 2 opposite glass doors in tempered glass, anti-fog, low-emissivity

Electronic controller (ECT-F)
Temperature display and setting with 0.1°C resolution, accuracy ±0.3°C. 16-character backlit alphanumeric LCD display, configurable in 5 languages. Membrane keypad with 4 keys, password protection for power on/off and set-point changes. Temperature alarms: three main types; event log: 12 events.

Structure and refrigeration
Internal dimensions: 50 x 48.5 x 140 cm (each). Nominal capacity: 400+400 L. Net capacity: 347+347 L. Insulation: high-density injected polyurethane (43 kg/m3), CFC-free, eco-friendly water injection. Insulation thickness: 70 mm back / 50 mm sides. Single-shell structure in white plastic-coated non-toxic steel internal/external with certified antibacterial treatment; interior also available in 18/10 AISI 304 stainless steel. Rounded corners and basin-shaped bottom. 4 unidirectional rollers included and two front feet for stability. Refrigeration type: professional fan-assisted. Defrost type: automatic adaptive with condensate evaporation.

Accessories available on request

• Lock with key
• Shelf for models 170-200-250-400
• Stainless steel shelf for models 170-200-250-400
• Perforated stainless steel shelf for models 170-200-250-400
• Aluminium sliding drawer with dividers for models 170-200-250-400
• Aluminium sliding drawer without dividers for models 170-200-250-400
• Wire sliding drawer on guides for models 170-200-250-400
• Plexiglass front riser for drawer
• Drawer with locking for narcotics
• Wire rack 14 x 42 x 15 cm H (max 3 per shelf)
• Wire rack 14 x 50 x 15 cm H (max 3 per shelf)
• Wheel kit (2 with brake) for models 170-200-250-400
• Internal power outlet
• Cable gland hole diameter 35 mm with plug
• Hole diameter 15 mm
• Humidity probe
• PT100 probe with free contacts
• Power supply 220V/1~/60Hz
• Power supply 115V/1~/60Hz
• Voltage stabiliser
• Cage packaging

Note
Indicative product code: Cod. MED0401 (x2).
